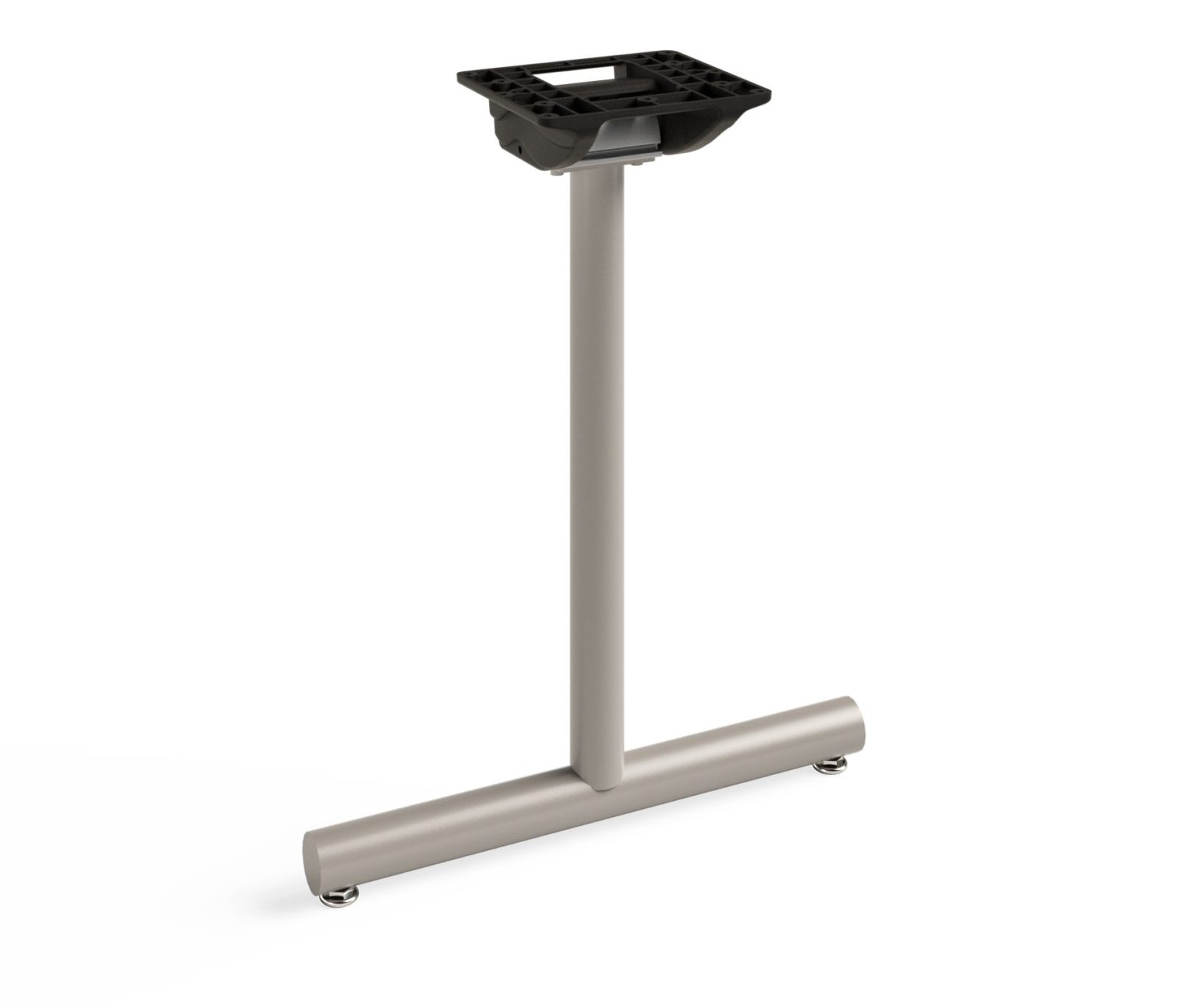

Tubular T Base Folding

For table bases that fold, Gibraltar offers a great looking, high quality and economical table base. Folding legs can be mounted on tables as short as 60″. For tables between 36″ and 59″, a riser bracket raises on mechanism off the table to allow one leg to fold over the other. Folding mechanism is sold as a complete leg, or as a separate accessory. Our ECONOMY option high impact plastic end caps are color matched and look very similar to steel end caps.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
77302"18"16"N/A10 lbs.27-3/4"
77312"22"18"N/A10 lbs.27-3/4"
77322"30"22"N/A11 lbs.27-3/4"
77332"36"26"N/A12 lbs.27-3/4"
77342"42"32"N/A16 lbs.27-3/4"
  • Construction:
    • Base is fully welded for PAINTED finishes
    • Base is bolted construction for Chrome and Satin Chrome finishes
    • Folding mechanism is mechanically attached to base with (4) screws (supplied)
  • Tubing: 2″ OD x 14ga
  • End Caps
    • Welded and polished to look like solid steel
    • Plastic color-matched end caps available for a cost savings, see Options
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Risers required for one base on tables shorter than 60″, see Options.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 1/4-20 x 1-3/4″ long shank, black.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Assemble folding mechanism to base with (2) screws (supplied).
    • Parts ship fully welded, or fully assembled for bolted construction.
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished or Satin Chrome:
    • Standard height, add $120 LIST
    • Taller, up to bar height, add $132 LIST
    • NOT available on base #7734
  • Special heights:
    • Shorter, add $25 LIST
    • Taller up to bar height, add $35 LIST
    • Bar Height, add prefix “B” to part #, add $35 LIST
  • Casters:
    • 60mm Hard Wheel:?? Add prefix “C” to part #, add $14 LIST
    • 60mm Soft Wheel: Add prefix “D” to part #, add $21 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $76 LIST
    • Height range 37-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $96 LIST
  • Risers
    • Add prefix “R” to part #, add $50 LIST
    • Risers required on one base for tables shorter than 60″
  • Plastic End Caps
    • Add prefix “PC” to part #, SUBTRACT $8 LIST
    • End caps are flat in shape and color matched to our standard paint finishes
  • Wire Holes
    • Add prefix “W” to part #, add $35 LIST
    • Includes (2) 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Tubular T Base – Folding – Spec Sheet
