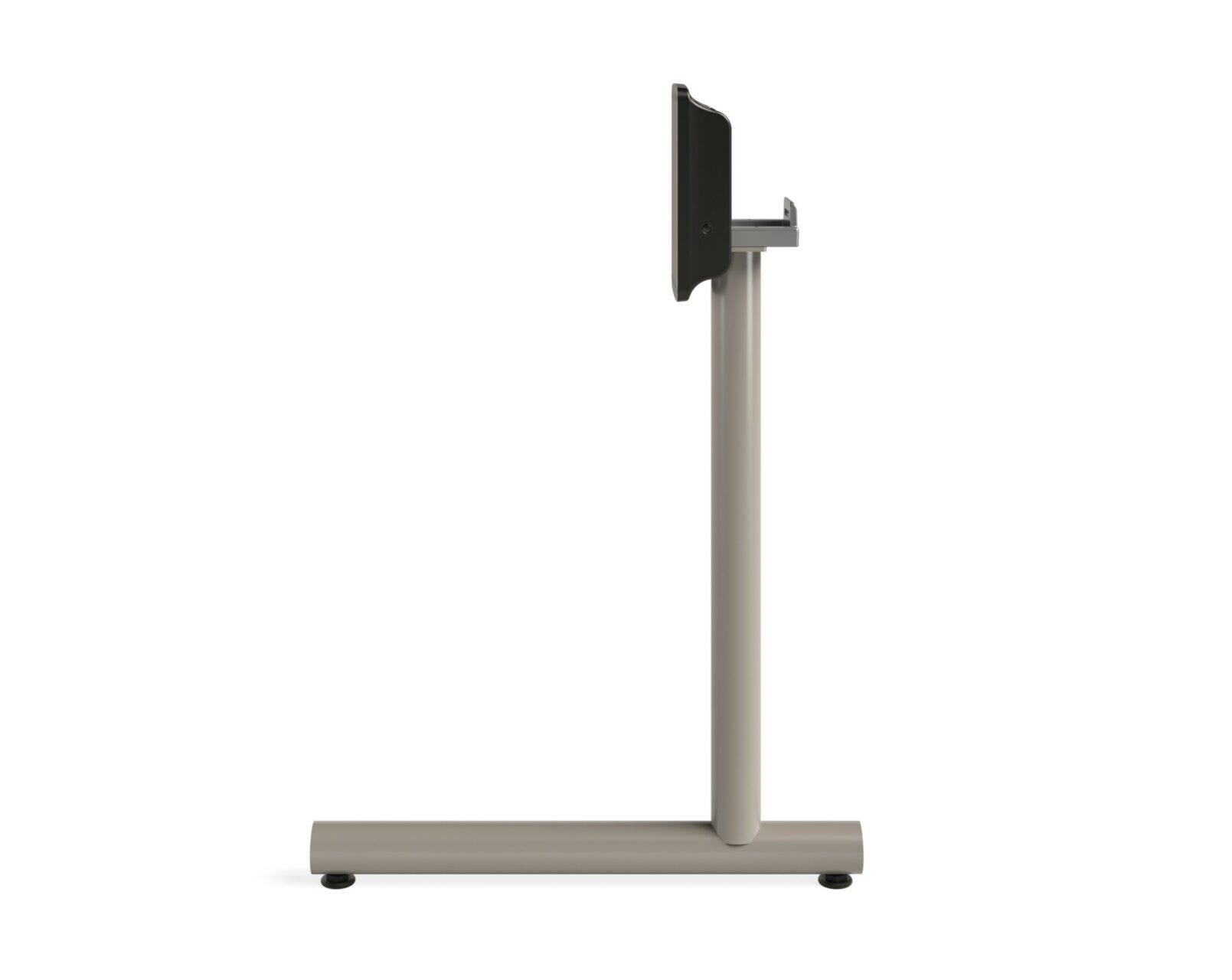

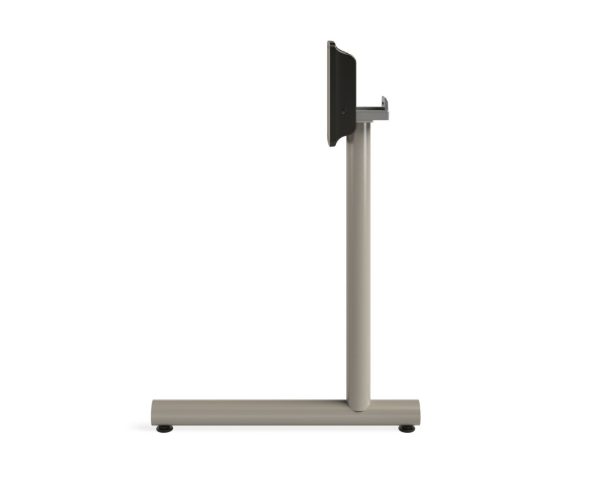

Name: Tubular C Base Flip-Top
SKU: H7118P
Price: 230 USD
Availability: instock

Construction:
- Base is fully welded for PAINTED finishes
- Base is bolted construction for Chrome and Satin Chrome finishes
Tubing: 2″ OD x 14ga
Flip Mechanism:
- Available in Silver and Black
  - Silver housings ship with silver and medium grey finishes
  - Black housings ship with all other standard base finishes
- Injection molded, aluminum and steel
- Requires (8) #12-14 screws (not supplied)
- Handle release is included and ships attached with standard length cables
  - For table longer than 72″, please call.
End Caps
- Welded and polished to look like solid steel
- Plastic color-matched end caps available for a cost savings, see Options
Base Height: 27-3/4″
Adjustable Leveler: 1/4-20 x 1-3/4″ long shank, black.
Finish: Powder coat finish as standard.
Assembly and Shipping:
- Parts ship fully welded, or fully assembled for bolted construction.
- Assemble flip-top mechanism to base with (4) screws (supplied).
- Parts ship 2 per box (sold individually)
- Broken carton charge for odd quantity is $20.00 LIST
- Can be shipped via FedEx or UPS

Unfinished/Raw: subtract $6 LIST
Polished or Satin Chrome:
- Standard height, add $120 LIST
- Taller, up to bar height, add $132 LIST
Special heights:
- Shorter, add $25 LIST
- Taller up to bar height, add $35 LIST
- Bar Height, add prefix “B” to part #, add $35 LIST
Casters:
- 60mm Hard Wheel: Add prefix “C” to part #, add $14 LIST
- 60mm Soft Wheel: Add prefix “D” to part #, add $21 LIST
Self-Leveling Glides:
- Add prefix “K” to part #, add $20 LIST
- Self-Leveling glides do add approx. 1/2″ to base height
Adjustable Spring Clip:
- Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $76 LIST
- Height range 37-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $96 LIST
Plastic End Caps
- Add prefix “PC” to part #, SUBTRACT $8 LIST
- End caps are flat in shape and color matched to our standard paint finishes
Concealed Wheels
- Add prefix “N” to part #, add $ 72 LIST
- Allows for “wheelbarrow” application when paired with a leveler style base
Wire Holes
- Add prefix “W” to part #, add $35 LIST
- Includes (2) 1-1/4″ removable grommets.
- Holes are 1-1/2″ x 2-1/4″ with grommets removed.

List quantity, part #, description, finish, and price.
All prices are FOB our facility, please specify your preferred method of shipment
Specify shipping and billing address
Please read terms and warranty

Part #	Column Size	Recommended Max. Top Depth	Base Spread	Length	Weight	Overall Height
H7118	2"	22"	18"	N/A	11 lbs.	27-3/4"
H7122	2"	26"	22"	N/A	12 lbs.	27-3/4"
H7126	2"	32"	26"	N/A	13 lbs.	27-3/4"
