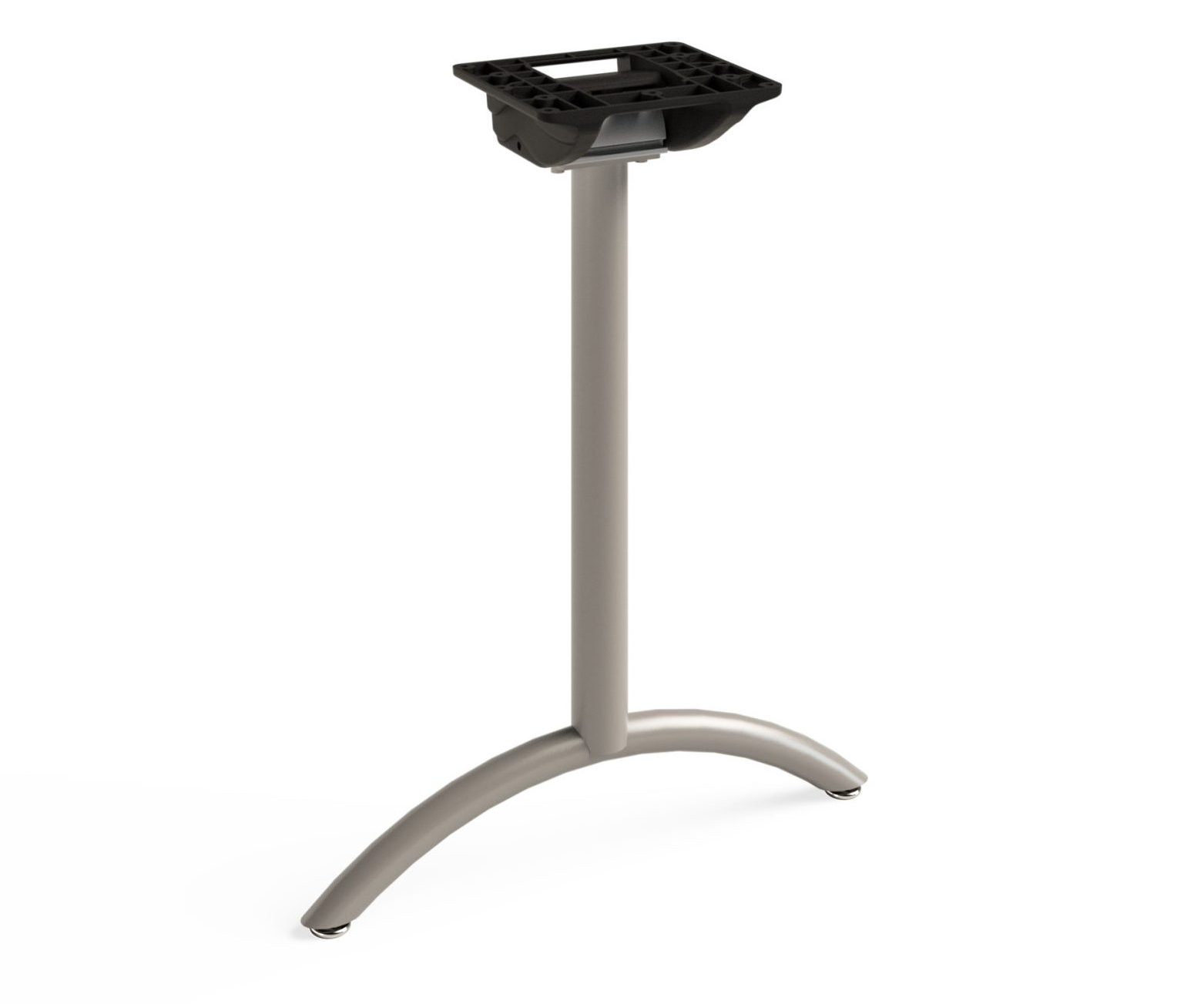

Arch T Base Folding

When you need tables that fold, Gibraltar’s Arch Base series offers you a new look as well as flexibility. Simple, elegant lines make this a good choice for a variety of environments. Arch bases can add the finishing touches to an ordinary environment and give it a new sense of life. The legs can be mounted on tables as short as 60″. For tables between 36″ and 59″, we offer a riser bracket that raises one mechanism off the table to allow one leg to fold over the other.



Contact Us for Pricing
Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
77902" Dia.22"16"N/A10 lbs.27-3/4"
77942" Dia.30"22"N/A11 lbs.27-3/4"
77982" Dia.36"26"N/A12 lbs.27-3/4"
  • Construction:
    • Base is fully welded.
    • Folding mechanism is mechanically attached to base with (2) screws (supplied)
  • Tubing:
    • Column 2″ OD x 14ga
    • Foot 1-3/8″ OD x 13ga
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • For tables shorter than 60″ risers are required – see options for pricing.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 1-3/8″ dia. x 1/4-20 x 5/8″ shank.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Assemble folding mechanism to base with (2) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished Chrome:
    • Standard height, add $145 LIST
    • Taller, up to bar height, add $160 LIST
  • Special heights:
    • Shorter, add $25 LIST
    • Taller up to bar height, add $35 LIST
    • Bar Height, add prefix “B” to part #, add $35 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $14 LIST
    • Soft Wheel: Add prefix “D” to part #, add $21 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $76 LIST
  • Risers
    • Risers are required on one leg for tables shorter than 60″
    • Add prefix “R” to part #, add $50 LIST
  • Wire Holes
    • Includes (2) 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
    • Add prefix “W” to part #, add $35 LIST
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty
