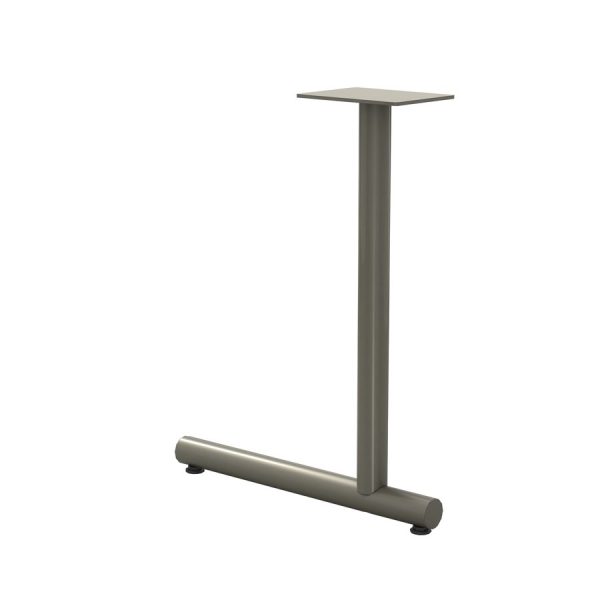

Tubular C Base

Functional, high quality and inexpensive, this offset C type table base offers freedom of movement because of the offset column. Our ECONOMY option high impact plastic end caps are color matched and look very similar to steel end caps.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
71182"22"18"11 lbs.27-3/4"
71222"26"22"12 lbs.27-3/4"
71262"32"26"13 lbs.27-3/4"
  • Construction:
    • Base is fully welded for PAINTED finishes
    • Base is bolted construction for Chrome and Satin Chrome finishes
  • Tubing: 2″ OD x 14ga
  • Mounting Plate:
    • 6″ x 8″ steel plate
    • Requires (8) #12-14 screws, not supplied
  • End Caps
    • Welded and polished to look like solid steel
    • Plastic color-matched end caps available for a cost savings, see Options
  • Base Height: 27-3/4″
  • Adjustable Leveler: 1/4-20 x 1-3/4″ long shank, black.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Parts ship fully welded, or fully assembled for bolted construction.
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20.00 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished or Satin Chrome:
    • Standard height, add $345 LIST
    • Taller, up to bar height, add $425 LIST
  • Special heights:
    • Shorter, add $28 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • 60mm Hard Wheel: Add prefix “C” to part #, add $14 LIST
    • 60mm Soft Wheel: Add prefix “D” to part #, add $21 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $78 LIST
    • Height range 37-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $98 LIST
  • Plastic End Caps:
    • Add prefix “PC” to part #, SUBTRACT $8 LIST
    • Color matched to Gibraltar standard powder coat finishes.
  • Concealed Wheels:
    • Add prefix “N” to part #, add $80 LIST
    • Allows for “wheelbarrow” application when paired with a leveler style base
  • Wire Holes:
    • Add prefix “W” to part #, add $35 LIST
    • Includes (2) 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Tubular C Base – Spec Sheet
