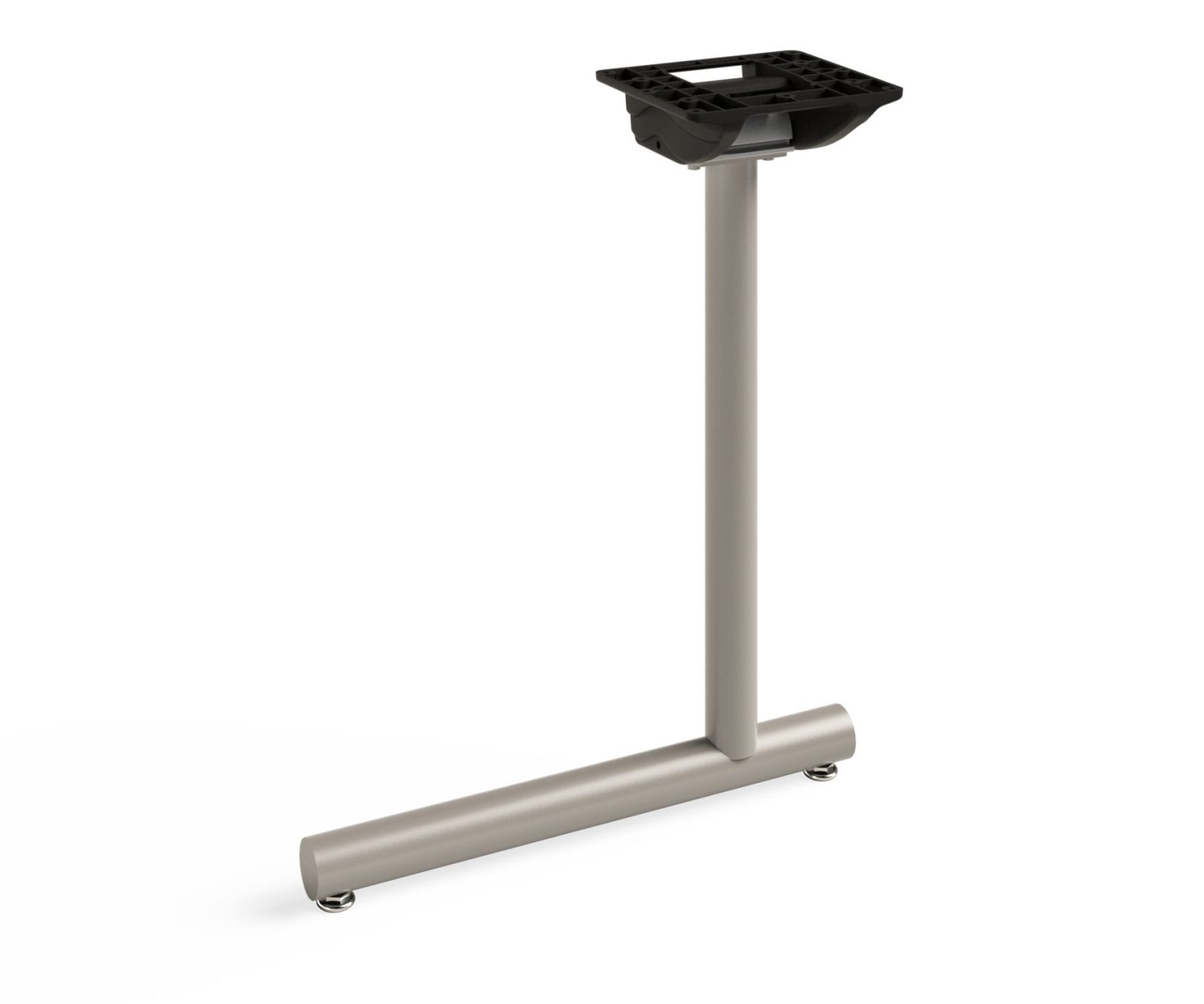

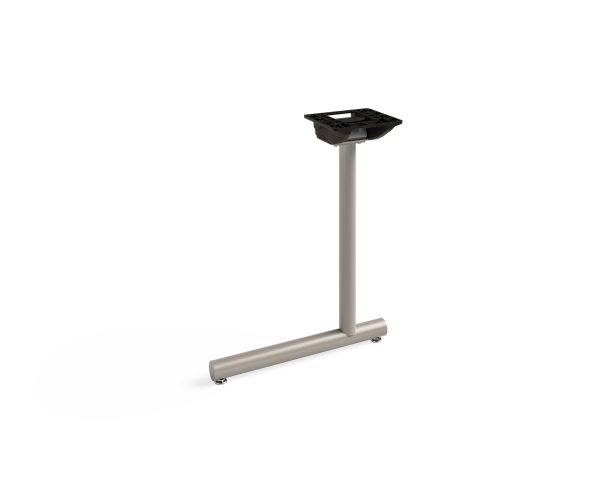

The Gibraltar Tubular Folding C Base is a simplistic & economical design that allows the bases to fold underneath the table's surface.

Tubular C Base Folding

The Tubular Folding C Base brings functionality to the forefront. The folding mechanism provides easy storage by having the Tubular C Bases fold up underneath the table surface. Folding legs can be mounted on tables as short as 60″. For tables between 36″ and 59″, a riser bracket is required to help raise the mechanism off the table to allow one leg to fold over the other. The folding mechanism can be purchased separately, or can be found on the Tubular Folding T Base as well.



Contact Us for Pricing
Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
F71182"22"18"N/A11 lbs.27-3/4"
F71222"26"22"N/A12 lbs.27-3/4"
F71262"32"26"N/A13 lbs.27-3/4"
  • Construction:
    • Base is fully welded for PAINTED finishes
    • Base is bolted construction for Chrome and Satin Chrome finishes
  • Tubing: 2″ OD x 14ga
  • Folding Mechanism:
    • Injection molded, aluminum and steel
    • Requires (10) #12-14 screws (not supplied)
    • Risers required for one base on tables shorter than 60″, see Options.
  • End Caps:
    • Welded and polished to look like solid steel
    • Plastic color-matched end caps available for a cost savings, see Options
  • Base Height: 27-3/4″
  • Adjustable Leveler: 1/4-20 x 1-3/4″ long shank, black.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Parts ship fully welded, or fully assembled for bolted construction.
    • Assemble folding mechanism to base with (2) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20.00 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished or Satin Chrome:
    • Standard height, add $345 LIST
    • Taller, up to bar height, add $415 LIST
  • Special heights:
    • Shorter, add $28 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • 60mm Hard Wheel: Add prefix “C” to part #, add $14 LIST
    • 60mm Soft Wheel: Add prefix “D” to part #, add $21 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $78 LIST
    • Height range 27-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $98 LIST
  • Plastic End Caps:
    • Add prefix “PC” to part #, SUBTRACT $8 LIST
    • End caps are flat in shape and color matched to our standard paint finishes
  • Wire Holes:
    • Add prefix “W” to part #, add $35 LIST
    • Includes (2) 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • Risers:
    • Add prefix “R” to part #, add $64 LIST
    • For tables shorter than 60″, risers are needed on one leg
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Tubular C Base – Folding – Spec Sheet
