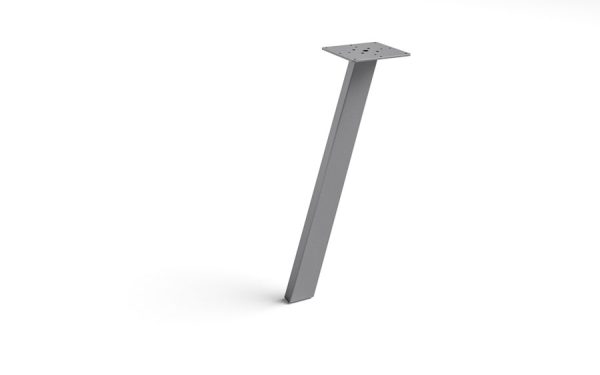

Angled Leg

Gibraltar’s angled table legs offer a distinctive and versatile solution to your table support needs.

NO ADDITIONAL SURCHARGES ON THIS PRODUCT

Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
15261-1/2" sqN/AN/AN/A6 lbs.27-3/4"
25262" sqN/AN/AN/A7 lbs.27-3/4"
25502-1/2" sqN/AN/AN/A7 lbs.27-3/4"
15361-1/2" x 3"N/AN/AN/A11 lbs.27-3/4"
  • Construction: Welded
  • Tubing:
    • #1526 is 1-1/2″ square, 14ga
    • #2526 is 2″ square, 14ga
    • #2550 is 2-1/2″ square, 14ga
    • #1536 is 1-1/2″ x 3″, 11ga
  • Mounting Plate:
    • 1526 and #2526 have a 4″ x 6¾” steel plate
      • Requires (12) #12-14 screws, not supplied
    • #2550 has a 6″ x 8″ steel plate
      • Requires (7) #12-14 screws, not supplied
    • #1536 has a 5″ x 6-1/2″ steel plate
      • Requires (14) #12-14 screws, not supplied
  • Adjustable Leveler
    • #1526 and #1536 use a 5/16-18 x ¾” long shank
    • #2526 and #2550 use a 3/8-16 x ¾” long shank
  • Base Height: 27 ¾”
  • Finish: Powder coat finish as standard
  • Assembly and Shipping:
    • No assembly required
    • Bases ships 2 per box, sold individually
      • Broken Carton charge of $20 LIST applies for an odd quantity
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $4 LIST
  • Polished or Satin Chrome:
    • #1526 and #2526 add $52 LIST
    • #2550 and #1536 add $80 LIST
  • Special heights:
    • Shorter, add $20.00 LIST
  • Casters:
    • Hard Wheel, add prefix “C” to part #:
      • #1526 and #2526 add $28 LIST (50mm)
      • #2550 and #1536 add $32 LIST (60mm)
    • Soft Wheel, add prefix “D” to part #:
      • #1526 and #2526 add $34 LIST (50mm)
      • #2550 and #1536 add $52 LIST (75mm)
  • Wire Holes
      • (2) Wire holes on underside of leg. Add prefix “W” to part #, add $35 LIST
      • #1526 and #1536 upper hole is 1″ x 2-1/4″, lower hole 1″ x 1-1/2″
      • #2526 and #2520 upper hole is 1-1/2″ x 2-1/4″, lower hole 1″ x 1-1/2″
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility. Please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

ANGLED LEG SERIES MOUNTING OPTIONS
