O Leg

Contact Us for Pricing
Part NumberColumn SizeDiameterPlate SizeRecommended Max Top DepthBase SpreadTop SizeLengthStretcher LengthRecommended Table LengthOverall HeightSide PanelsUse With Panel Base PartStylePanel ShapeRecommended Top SizeWeight
22501" x 2-1/2"17-1/2"27-3/4"14 lbs.
22511" x 2-1/2"23-1/2"27-3/4"16 lbs.
22521" x 2-1/2"29-1/2"27-3/4"18 lbs.
22531" x 2-1/2"35-1/2"27-3/4"20 lbs.
CH22501" x 2-1/2"17-1/2"34-3/4"16 lbs.
CH22511" x 2-1/2"23-1/2"34-3/4"18 lbs.
CH22521" x 2-1/2"29-1/2"34-3/4"20 lbs.
CH22531" x 2-1/2"35-1/2"34-3/4"22 lbs.
B22501" x 2-1/2"17-1/2"40-3/4"19 lbs.
B22511" x 2-1/2"23-1/2"40-3/4"21 lbs.
B22521" x 2-1/2"29-1/2"40-3/4"23 lbs.
B22531" x 2-1/2"35-1/2"40-3/4"25 lbs.
  • Construction: Welded
  • Tubing: 1″ x 2-1/2″, 14ga
  • Mounting Plate:
    • (2) fabricated steel plates, 13ga
    • (8) additional mounting holes available through the top of the frame itself
      • Requires (16) #12-14 screws total per base (not supplied)
  • Base Height: Multiple, see chart
  • Adjustable Leveler: 3/8-16 x 1-3/4″ long shank

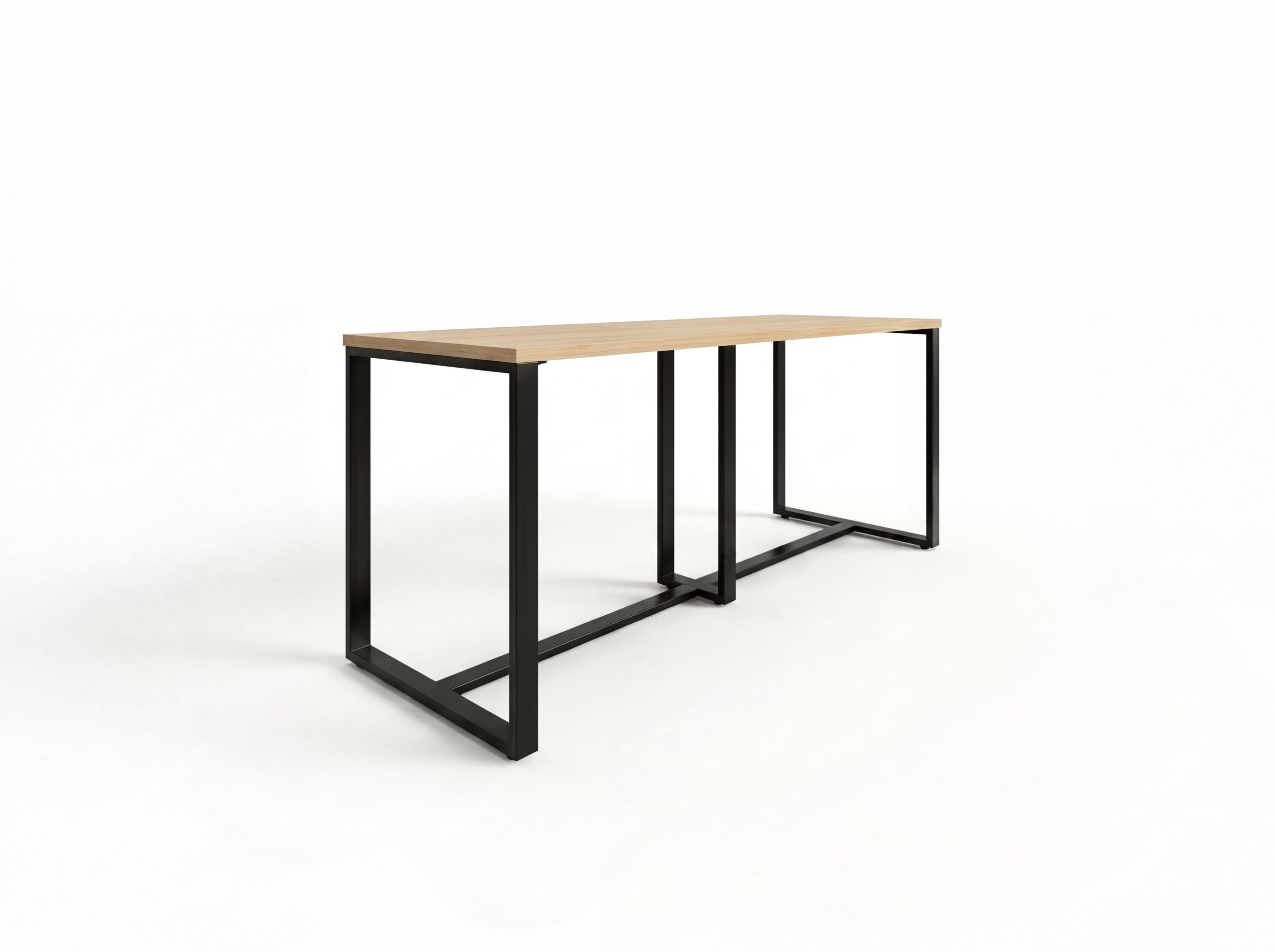

  • Stretcher (OPTIONAL):
    • Sold separately
    • When using a stretcher with an O Leg, add prefix “S” to part number (ex: #S2252)
    • Stretcher recommended on counter height and bar height bases to help reduce racking
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Parts ship fully welded
    • Parts ship 2 per box (sold individually)
    • Broken Carton Charge for odd quantity is $20 LIST
    • Most can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $10 LIST
  • Special Heights:
    • Shorter, add $66 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $40 LIST
    • Soft Wheel: Add prefix “D” to part #, add $47 LIST
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

O-Leg – Spec Sheet

The O Leg is the “go anywhere” base that brings a level of classic sophistication to the space.  If you are looking for clean lines and simple elegance, you’ve found it.

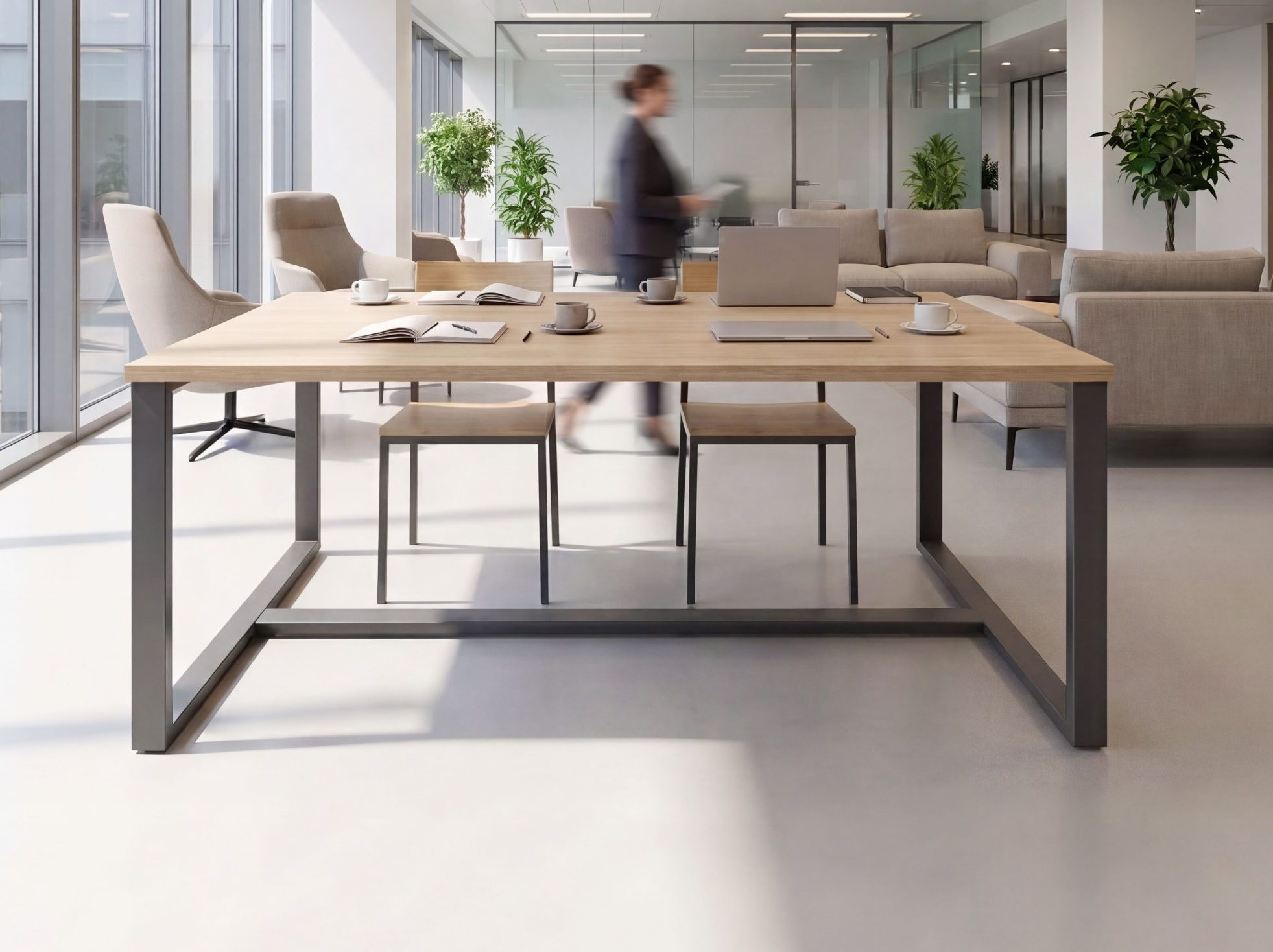

O Leg

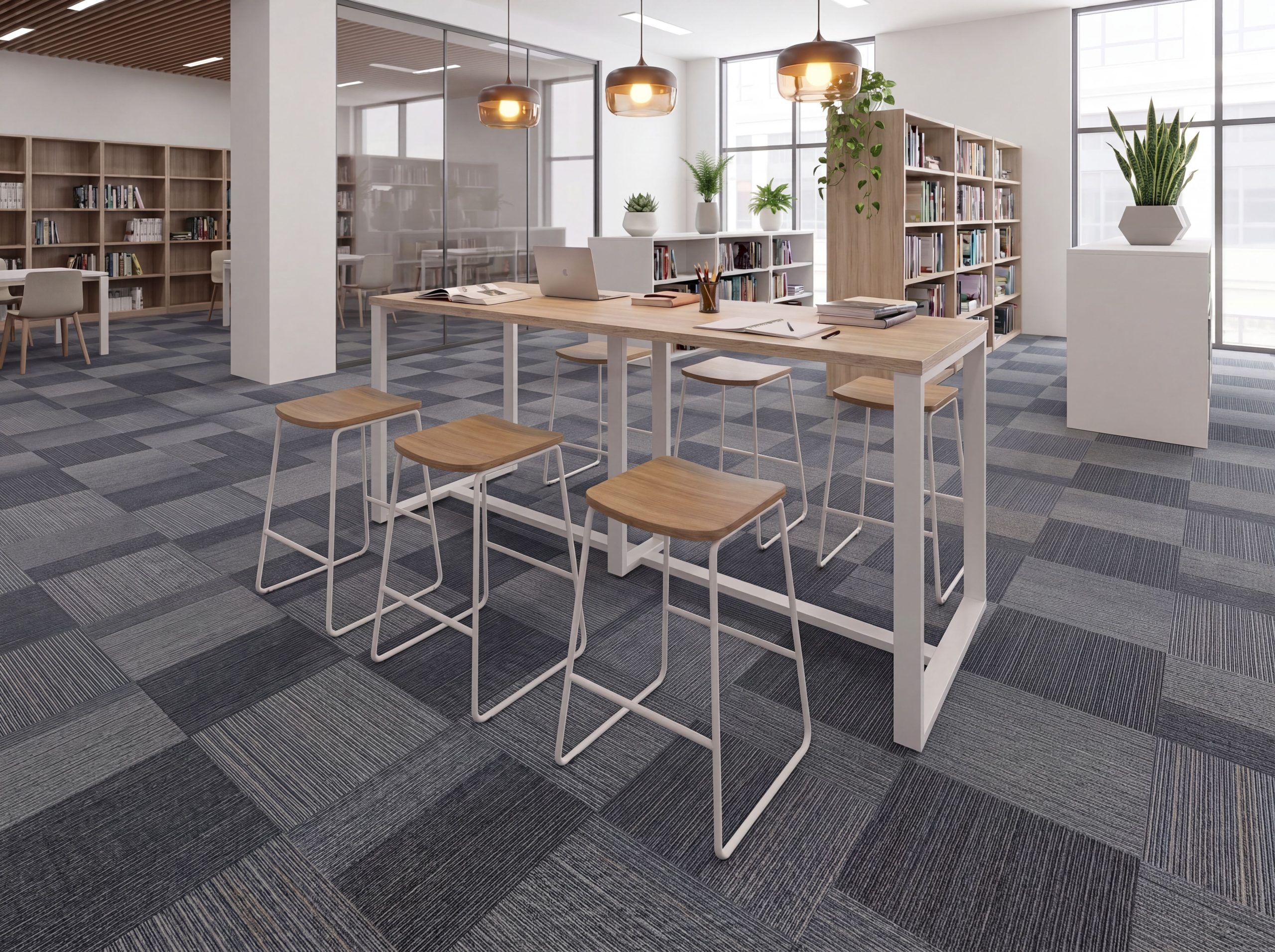

O Leg - Image 2
O Leg - Image 3
O Leg - Image 4
