Propel Y Base

The Propel Y base can bring a great new look to your tables. An optional stretcher bar is available for larger tops. The stretcher bar should be used on tops that are larger than 30″ wide and 60″ long. Tops that are 30″ wide x 60″ long or less do not need a stretcher bar.

For larger applications see the Propel Double Column Y Bases.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
56322-1/4"24"17-1/2"10 lbs27-3/4"

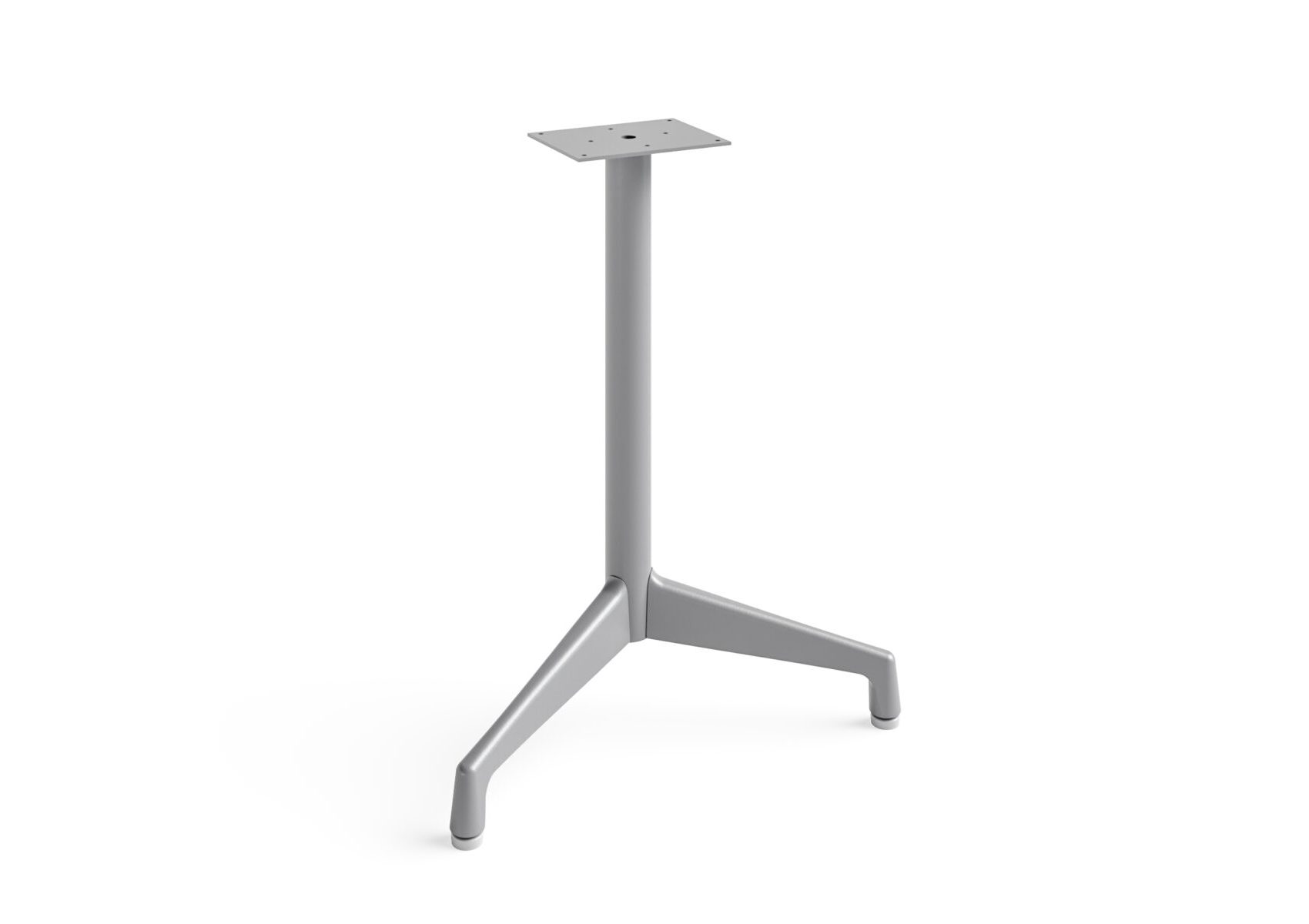

56342-1/4"30"22-3/4"11 lbs.27-3/4"
S56352-1/4"36"28-1/2"12 lbs.27-3/4"

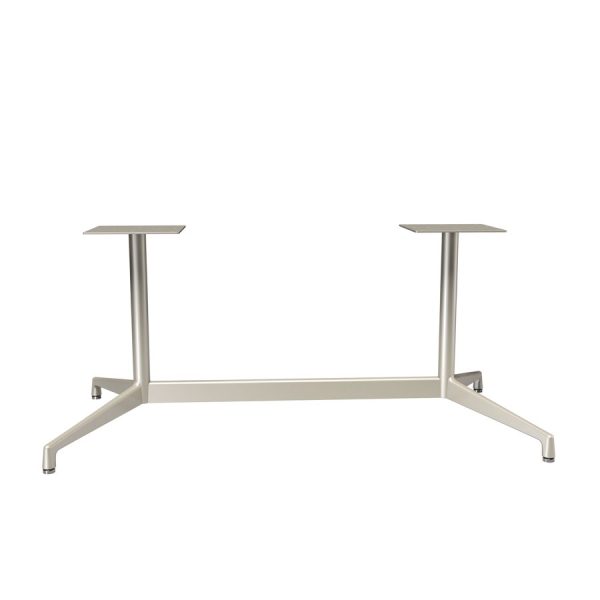

S56362-1/4"48"33-3/8"18 lbs.27-3/4"
  • Construction: Bolted, welded combination
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Mounting Plate:
    • #5632 and #5634 use a 6″ x 8″ plate. Requires (8) #12-14 screws (not supplied)
    • #S5635 uses an 8″ x 8″ plate. Requires (12) #12-14 screws (not supplied)
    • #S5636 uses a 12″ x 12″ plate. Requires (12) #12-14 screws (not supplied)
  • Stretcher:
    • Sold separately
    • When using a stretcher with #5632 and #5634 add prefix “S” to part #.
    • Not required to be used with #5632 or #5634 for strength purposes.
    • REQUIRED for strength on #S5635 and S5636
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard.
    • Polish and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Parts ship KD, assembly of feet required
    • Parts #5632, #5634, and #S5635 ship 2 per box (sold individually).
      • Broken carton charge for odd quantity is $20 LIST
    • Part #S5636 ships 1 per box
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished or Satin Chrome:
    • Standard height, add $205 LIST
    • Taller, up to bar height, add $260 LIST
    • For Chrome on AH & AHB options, add $365 LIST
  • Special Heights:
    • Shorter, add $28 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $17 LIST
    • Soft Wheel: Add prefix “D” to part #, add $24 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Flip-Top w/ Handle Release:
    • Add prefix “H” to part #, add $125 LIST
    • Only available on parts 5632, 5634 & S5635
    • For tops longer than 72″, please call
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $90 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $110 LIST
  • Wire Holes:
    • Add prefix “W” to part #, add $28 LIST
    • Includes (2) wire holes with 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets remove
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Propel Y Base – Spec Sheet
