DuraCast Y Base

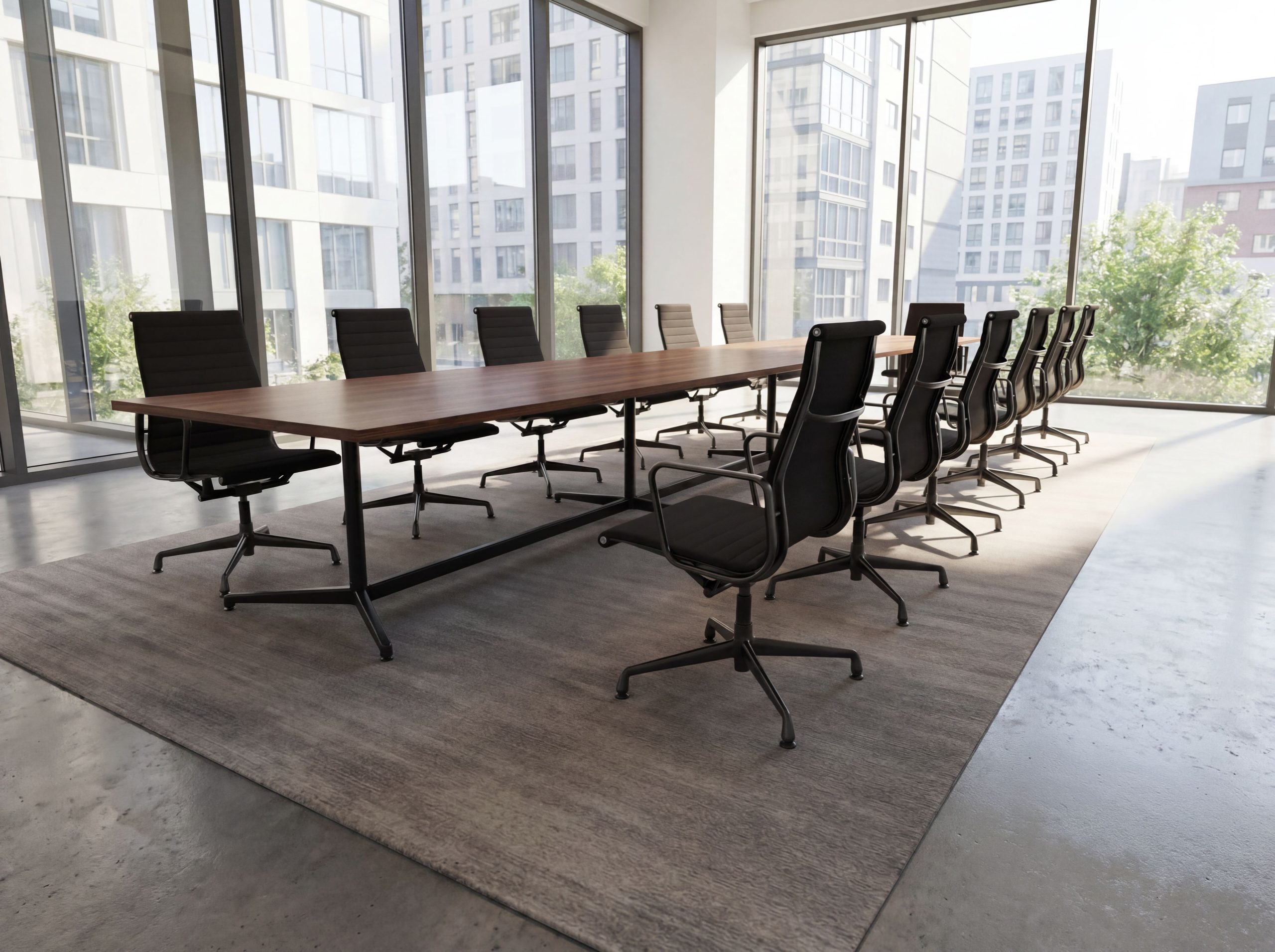

The DuraCast Y base can bring a great new look to your tables. An optional stretcher bar is available for larger tops. The stretcher bar should be used on tops that are larger than 30″ wide and 60″ long. Tops that are 30″ wide x 60″ long or less do not need a stretcher bar.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
51322-1/4" Dia.24"17-1/2"10 lbs.27-3/4"
51342-1/4" Dia.30"22-3/4"11 lbs.27-3/4"
S51352-1/4" Dia.36"29"12 lbs.27-3/4"
S51362-1/4" Dia.48"33-3/8"20 lbs.27-3/4"
  • Construction: Bolted, welded combination
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Mounting Plate:
    • #5132 and #5134 use a 6″ x 8″ plate. Requires (6-8) #12-14 screws (not supplied)
    • #S5135 uses an 8″ x 8″ plate. Requires (10-12) #12-14 screws (not supplied)
    • #S5136 uses a 12″ x 12″ plate. Requires (12) #12-14 screws (not supplied)
  • Stretcher:
    • Sold separately
    • When using a stretcher with #5132 and #5134 add prefix “S” to part #.
    • Not required to be used with #5132 or #5134 for strength purposes.
    • REQUIRED for strength on #S5135 and S5136
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard.
    • Polished and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Ship KD, assembly of feet required
    • Parts #5132, #5134, #S5135 ship 2 per box (sold individually).
      • Broken carton charge for odd quantity is $20 LIST
    • Part #S5136 ships 1 per box
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished or Satin Chrome:
    • Standard height, add $205 LIST
    • Taller, up to bar height, add $260 LIST
    • For Chrome on AH & AHB options, add $365 LIST
  • Special Heights:
    • Shorter, add $28 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $17 LIST
    • Soft Wheel: Add prefix “D” to part #, add $24 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Leveler Extensions:
    • Add prefix “E” to part #, add $30 LIST
    • Used in combination with casters for wheelbarrow application.
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $88 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $108 LIST
  • Flip-Top w/ Handle Release:
    • Add prefix “H” to part #, add $125 LIST
    • CANNOT be used with S5136, max. 36″ deep tops.
    • For tops longer than 72″ please call
  • Wire Holes:
    • Add prefix “W” to part #, add $28 LIST
    • Includes (2) wire holes with 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

DuraCast Y Base – Spec Sheet
