Fusion Double T Base

Part Number	Column Size	Diameter	Plate Size	Recommended Max Top Depth	Base Spread	Top Size	Length	Stretcher Length	Recommended Table Length	Overall Height	Side Panels	Use With Panel Base Part	Style	Panel Shape	Recommended Top Size	Weight
2754	2" sq			42"	32"											15 lbs.
2755	2" sq			60"	38"											16 lbs.

Construction: Welded construction
Tubing:
- Column:2″ Square, 14ga
- Foot: 1″ x 2-1/2″ steel, 14ga
Mounting Plate:
- (2) Steel 6″ x 8″ plates
- Requires (12-16) #12-14 screws per base (not supplied)
Base Height: 27-3/4″
Adjustable Leveler: 3/8-16 x 3/4″ long shank.
Plastic End Caps:
- Wedge-shaped, color matched to Gibraltar standard powder coat finishes
- Call for availability on end caps in premium finishes
Finish: Powder coat finish as standard.
Assembly and Shipping:
- Parts ship 2 per box (sold individually)
- Broken carton charge for odd quantity is $20 LIST
- Can be shipped via FedEx or UPS

Unfinished/Raw: subtract $6 LIST
Special heights:
- Shorter, add $58 LIST
- Taller up to bar height, add $66 LIST
- Bar Height, add prefix “B” to part #, add $66 LIST
Casters:
- Hard Wheel: Add prefix “C” to part #, add $16 LIST
- Soft Wheel: Add prefix “D” to part #, add $23 LIST
Self-Leveling Glides:
- Add prefix “K” to part #, add $22 LIST
- Self-Leveling glides do add approx. 5/8″ to base height
Wire Holes:
- Add prefix “W” to part #, add $38 LIST (per column)
- (2) Holes are 1-1/2″ x 2-1/4″

List quantity, part #, description, finish, and price.
All prices are FOB our facility, please specify your preferred method of shipment
Specify shipping and billing address
Please read terms and warranty

Fusion TT Base – Spec Sheet

Fusion is a low-profile, contemporary-styled base design that will certainly give your space and aesthetic boost. The combination of a square column, rectangle foot, and wedge-shaped, color-matched, plastic end caps combines clean lines and an inviting touch for any space.

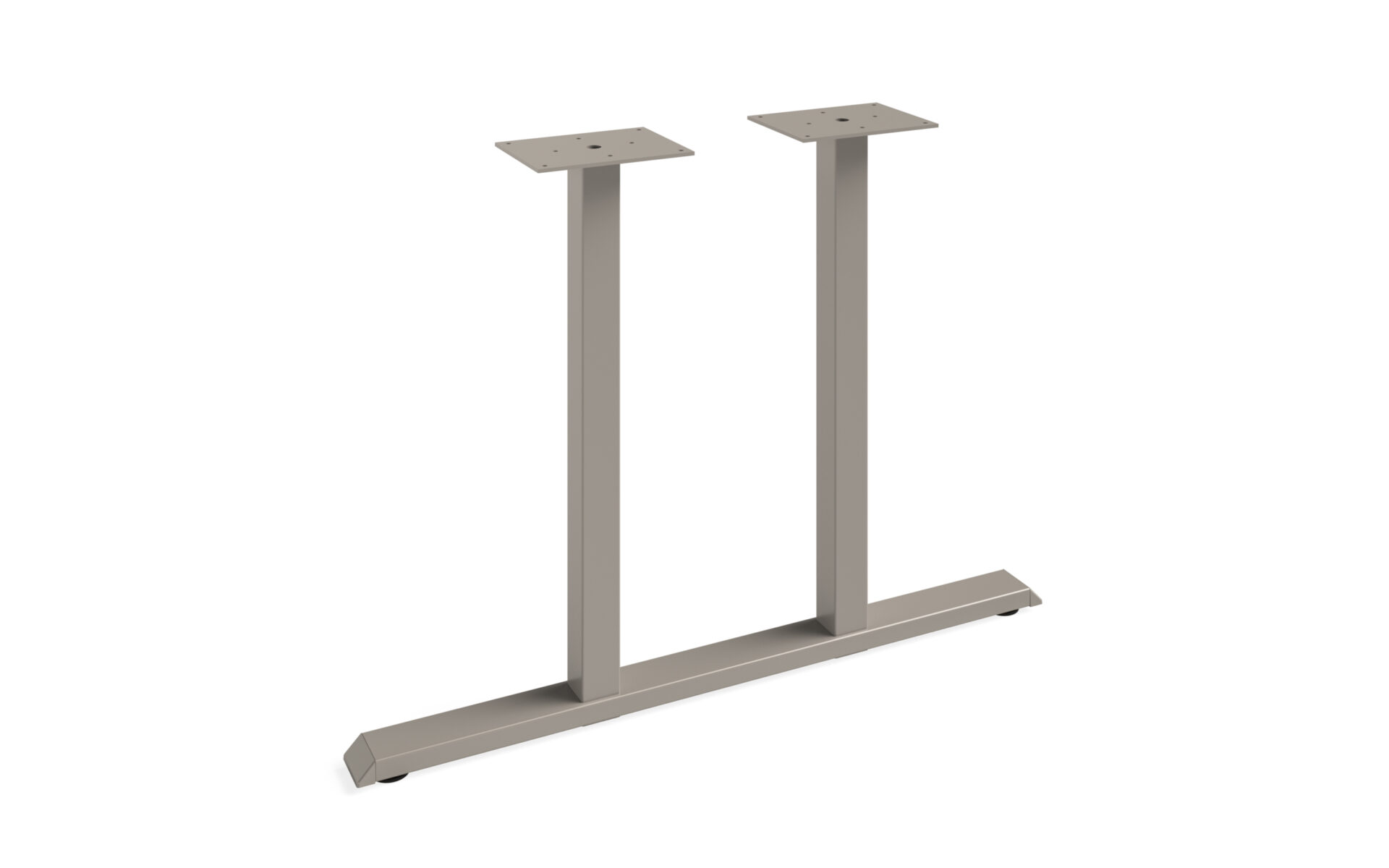

Fusion Double T Base
