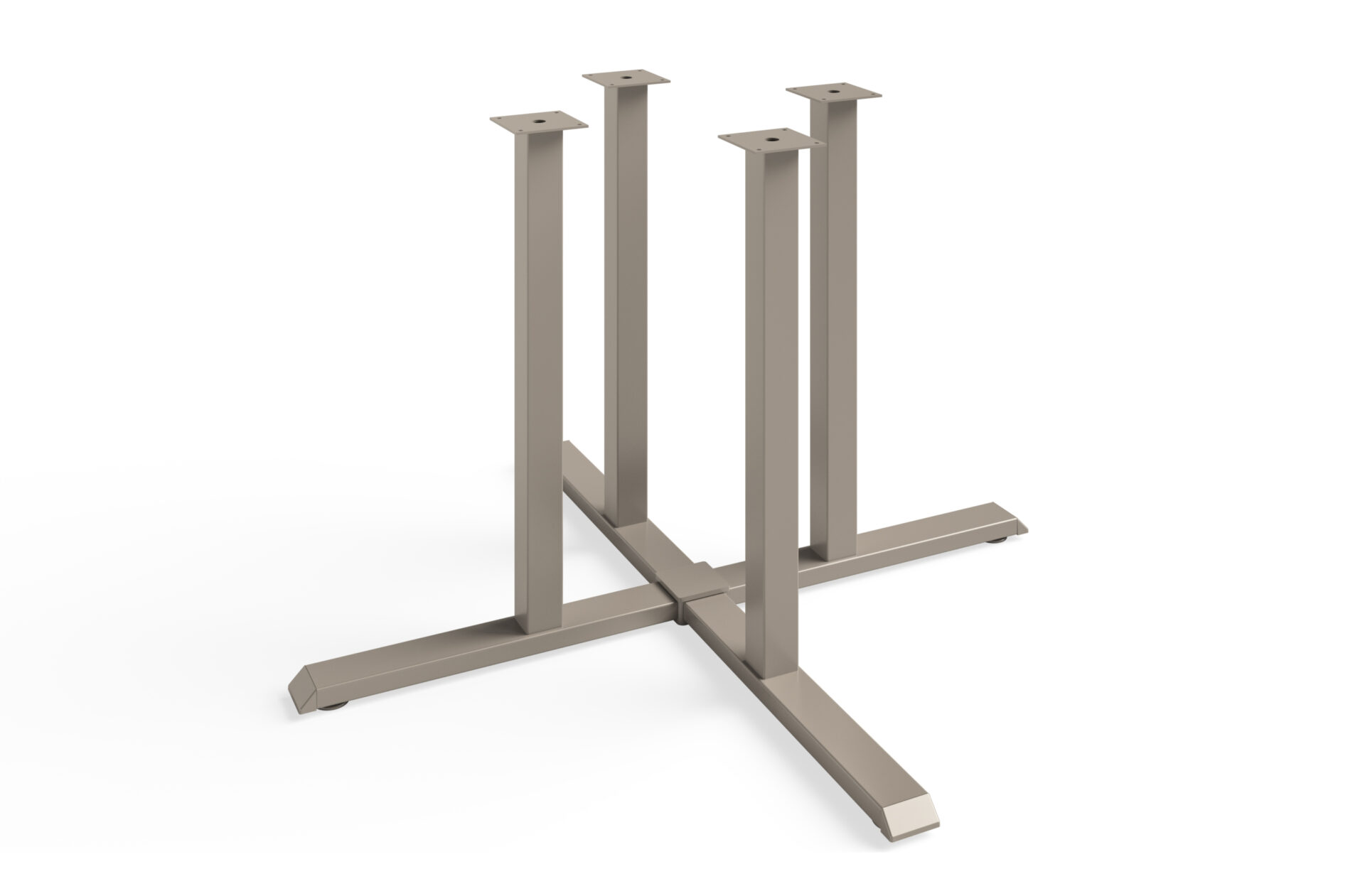

Fusion 4 Post X Base

Fusion is a low-profile, contemporary-styled base design that will certainly give your space and aesthetic boost. The combination of a square column, rectangle foot, and wedge-shaped, color-matched, plastic end caps combines clean lines and an inviting touch for any space.

Part NumberColumn SizeDiameterPlate SizeRecommended Max Top DepthBase SpreadTop SizeLengthStretcher LengthRecommended Table LengthOverall HeightSide PanelsUse With Panel Base PartStylePanel ShapeRecommended Top SizeWeight
27732" sq60" Sq / 60" Rd43.75" x 43.75"36 lbs.
  • Construction: Rigid Bolted
  • Column: 2″ Square, 14ga
  • Base:
    • 1″ x 2-1/2″ steel, 14ga
  • Mounting Plate:
    • (4) Steel 4″ x 4″
    • Requires (16) #12-14 screws, not supplied.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Plastic End Caps:
    • Wedge-shaped, color matched to Gibraltar standard powder coat finishes
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Ships KD in one box, assembly required
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $25 LIST
  • Special heights:
    • Shorter, add $70 LIST
    • Taller up to bar height, add $95 LIST
    • Bar Height, add prefix “B” to part #, add $95 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $60 LIST
    • Soft Wheel: Add prefix “D” to part #, add $74 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $37 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Wire Holes:
    • Add prefix “W” to part #, add $38 LIST
    • (2) holes are 1-1/2″ x 2-1/4″
    • Wire holes will be added to (1) column
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

4-Post Fusion X Base – Spec Sheet
