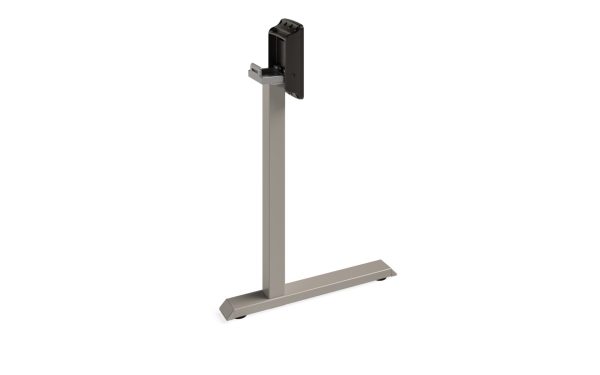

Fusion C Base Flip-Top

Fusion is a low-profile, contemporary-styled base design that will certainly give your space and aesthetic boost.  The handle release mounts on the underside of the table and is centered on the table length, close to the edge. The single handle allows for one individual to release both mechanisms simultaneously and flip the table up and down. Gibraltar’s standard Silver and Gray bases come with a silver mechanism. All other colors receive a black mechanism.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
H27572" sq20"18"N/A10 lbs.27-3/4"
H27582" sq26"22"N/A11 lbs.27-3/4"
H27592" sq32"26-1/4"N/A12 lbs.27-3/4"
  • Construction:
    • Welded construction
    • Flip-Top mechanism is mechanically attached to base with (4) screws (supplied)
  • Column: 2″ Square, 14ga
  • Base:
    • 1″ x 2-1/2″ steel, 14ga
    • Plastic end caps, color matched for standard finishes
  • Flip-Top Mechanism:
    • Available in Silver and Black.
      • Silver housings ship with Silver and Medium Gray base finishes
      • Black housings ship with all other standard base finishes
      • For questions or special requests please call
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Handle release is included and ships attached with standard length cables
    • For tables longer than 72″ please call
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Assemble flip-top mechanism to base with (4) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Special heights:
    • Shorter, add $25 LIST
    • Taller up to bar height, add $35 LIST
    • Bar Height, add prefix “B” to part #, add $35 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $16 LIST
    • Soft Wheel: Add prefix “D” to part #, add $23 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Wire Holes
    • Add prefix “W” to part #, add $35 LIST
    • (2) Holes are 1-1/2″ x 2-1/4″
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Fusion C Base – Flip-Top – Spec Sheet
