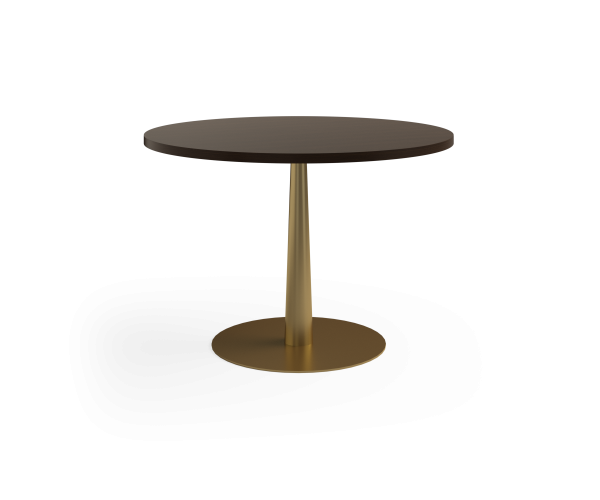

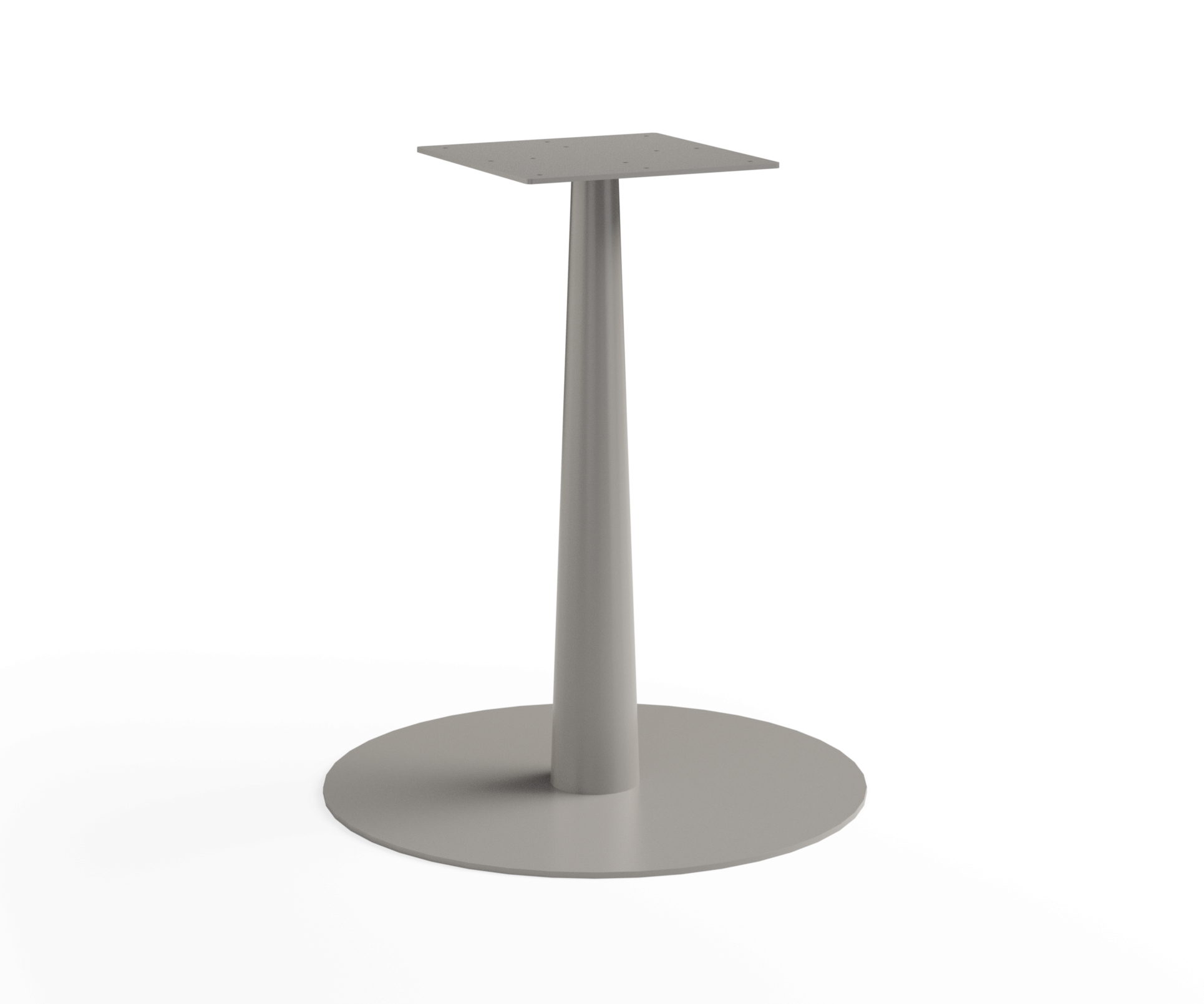

Tapered Pedestal Base

Tapered disc bases add a distinctive elegant look to your tables. These low profile discs almost go undetected by your feet. The taper on the tube is a dramatic 4″ diameter at the top and 2″ at the bottom. Levelers are offered as an option and position the base about 1″ off the floor. Bar height is available and tapers from approximately 5″ at the top to 2 1/4″ at the bottom.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
18504"-2"30" rd18" rd41 lbs.27-3/4"
18544"-2"42" rd23-3/4" rd46 lbs.27-3/4"
18565"-2-1/4"30" rd18" rd47 lbs.40-3/4"
18585"-2-1/4"42" rd23-3/4" rd67 lbs.40-3/4"
  • Construction:
    • Mounting plate welded to column
    • Discs are bolted to column assembly with (2) flat head screws (provided).
  • Column:
    • #1850 and #1854 fabricated 14ga tube
    • #1856 and #1858 fabricated 11ga tube
  • Discs: 1/4″ steel
  • Spacer:
    • Spacer between column and disc is Satin Chrome as standard
  • Mounting Plate:
    • 12″ x 12″ steel plate
    • Requires (12) #12-14 screws, not supplied
  • Adjustable Leveler (optional):
    • 1/4-20 x 1/2″ long shank, black. See Options
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Shipped KD, assembly required
    • Parts in 2 separate boxes (column assembly in one, disc in another)
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $15 LIST
  • Special Heights:
    • Shorter only, add $100 LIST
  • Levelers:
    • Add prefix “L” to part #, add $80 LIST
    • Levelers are suggested for all uneven surfaces
  • Flip Top:
    • Add prefix “FT” to part #, add $188 LIST
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Tapered Pedestal Base – Spec Sheet
