A low profile round pedestal base

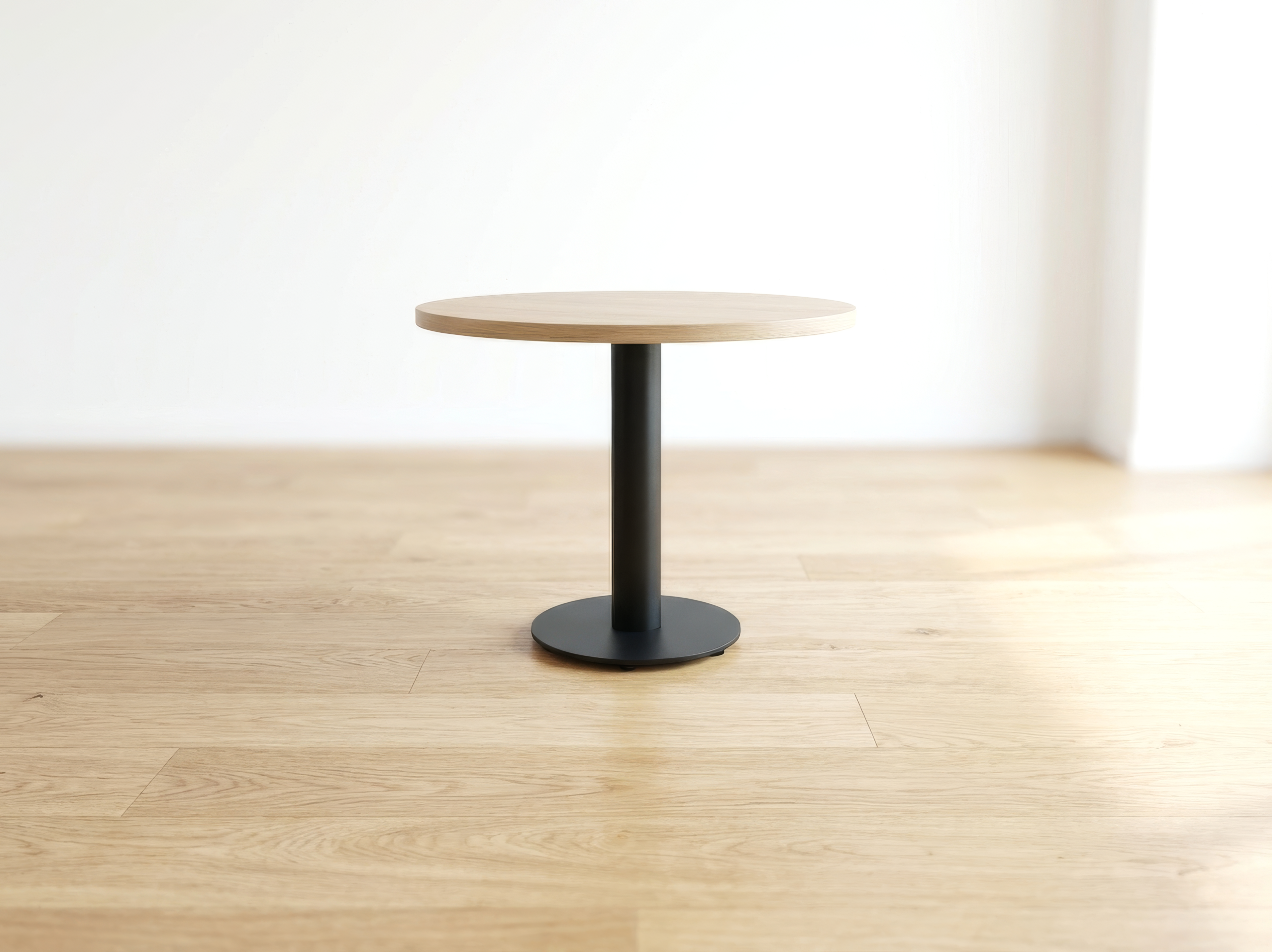

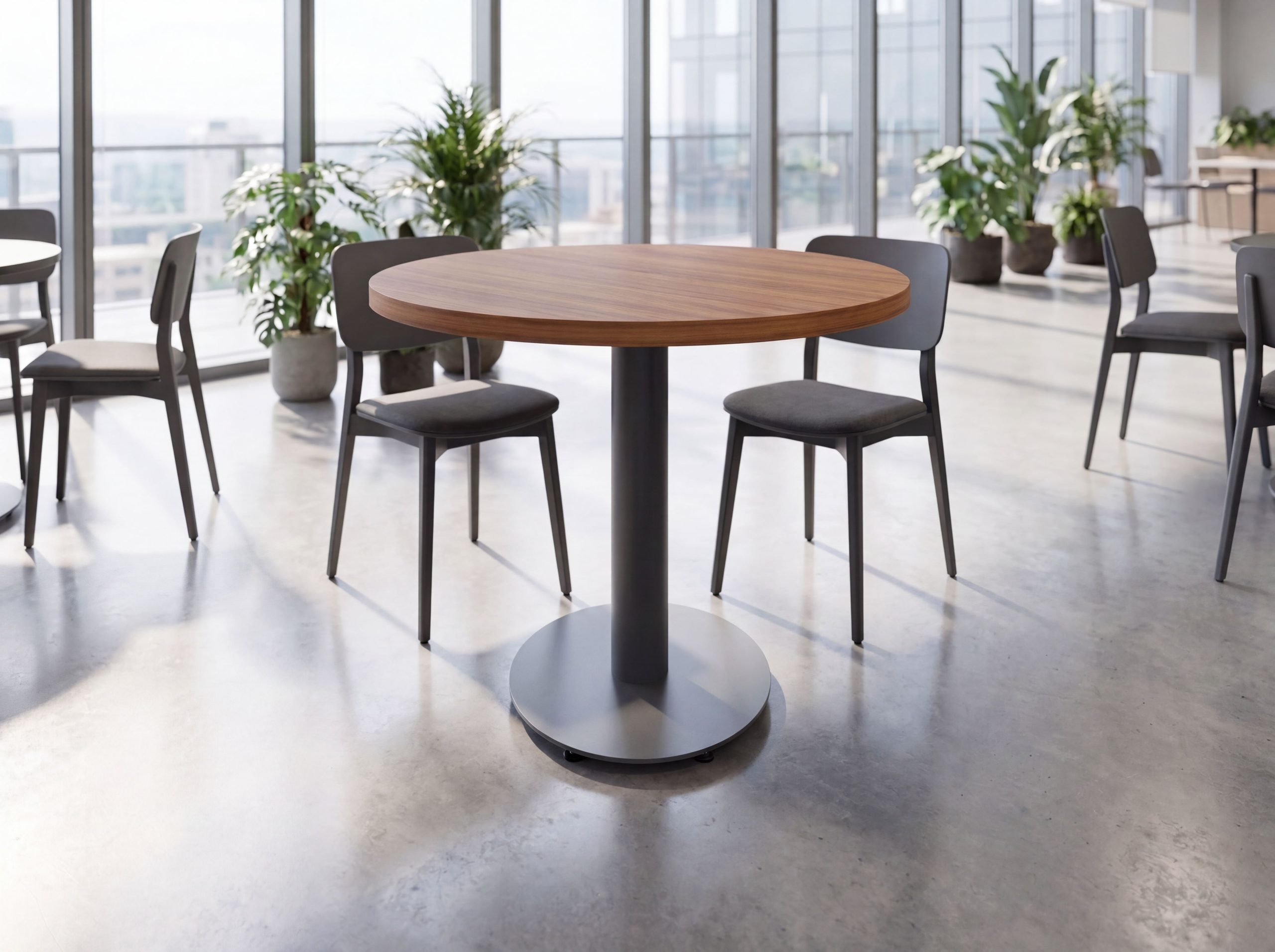

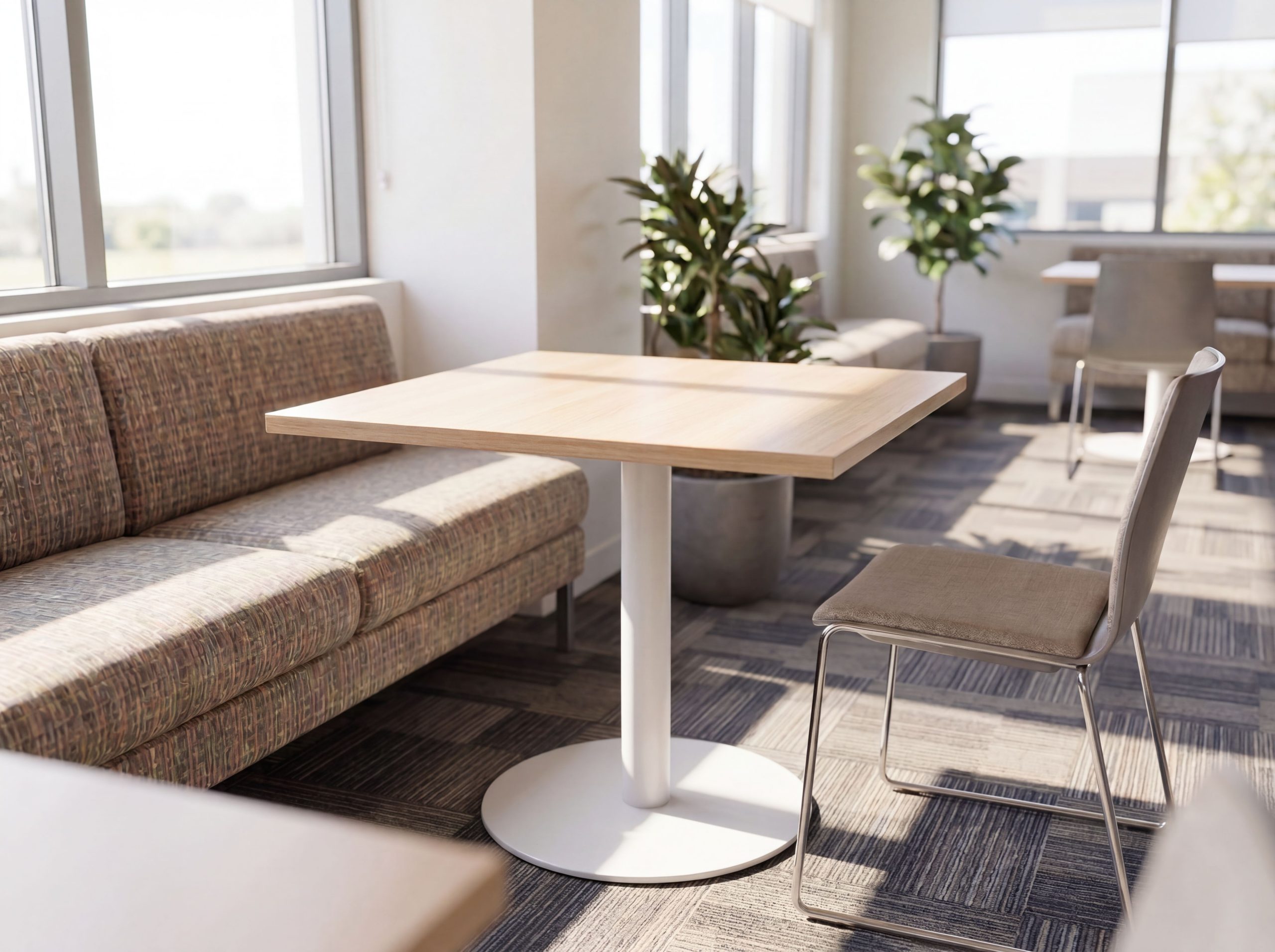

Round Pedestal Base

When you need to maximize the space under a table, a round disc-type pedestal base is an excellent choice. These low-profile discs almost make the base disappear into the floor while still maintaining the stability and mobility needed in a freestanding table. Our standard style has no levelers, and it sits flat on the floor almost undetected by your feet. Levelers are offered as an option and positions the base about 1″ off the floor.

Contact Us for Pricing
Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
18444"36" rd18" rdN/A31 lbs.27-3/4"
22444"42" rd23-3/4" rdN/A45 lbs.27-3/4"
22664"54" rd28" rdN/A50 lbs.27-3/4"
22676"60" rd32" rdN/A75 lbs.27-3/4"
  • Construction:
    • Mounting plate welded to column
    • Discs are bolted to column assembly with (2) flat head screws (provided).
  • Column:
    • #1844, #2244, and #2266 use 4″ diameter, 16 ga tube
    • #2267 uses a 6″ diameter, 16ga tube
  • Discs: 1/4″ steel
  • Mounting Plate:
    • 12″ x 12″ steel plate
    • Requires (12) #12-14 screws, not supplied
  • Base Height: 27-3/4″
  • Adjustable Leveler (optional):
    • 1/4-20 x 1/2″ long shank, black. See Options
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Shipped KD, assembly required
    • Parts in 2 separate boxes (column assembly in one, disc in another)
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $15 LIST
  • Polished or Satin Chrome:
    • Available, please call for quote.
  • Special Heights:
    • Shorter, add $25 LIST
    • Taller up to bar height:
      • 1844, 2244, & 2266, add $59 LIST
      • 2267, add $105 LIST
    • Bar Height, add prefix “B” to part #:
      • 1844, 2244, & 2266, add $59 LIST
      • 2267, add $105 LIST
  • Levelers:
    • Add prefix “L” to part #, add $32 LIST
    • Levelers are suggested for all uneven surfaces
  • Flip Top:
    • Add prefix “FT” to part #, add $148 LIST
    • Max. top size supported is 54″
  • Internal Wire Access:
    • Add prefix “W” to part #, add $85 LIST
    • Includes 3.5″ hole through the mounting plate and 1.4″ hole out bottom of disc.
    • Highly recommend combining with the Leveler option
  • Power Box Wire Management:
    • Add prefix “W” to part # and suffix “-0005” (ex: LW1844-0005), add $218 LIST
    • A steel box mounting plate with a 9.6″ x 9.6″ x 2.75″ tall I.D. allows room for a powder module to be concealed. Wires and plugs travel down the inside of the column and out a 1.4″ hole out bottom of disc. Box is powder coated to match base.
    • Highly recommend combining with the Leveler option
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility. Please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Round Pedestal Base – Spec Sheet
