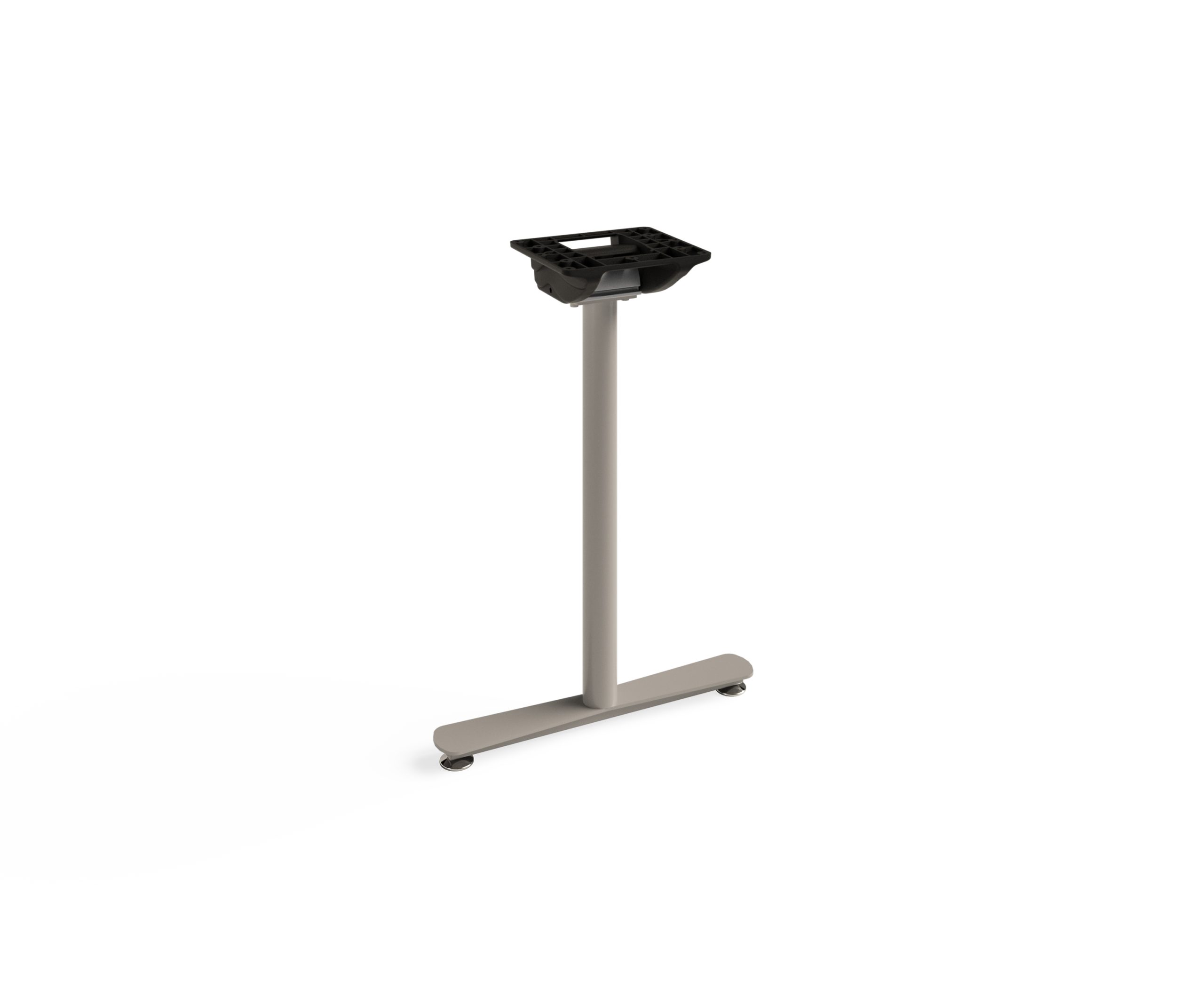

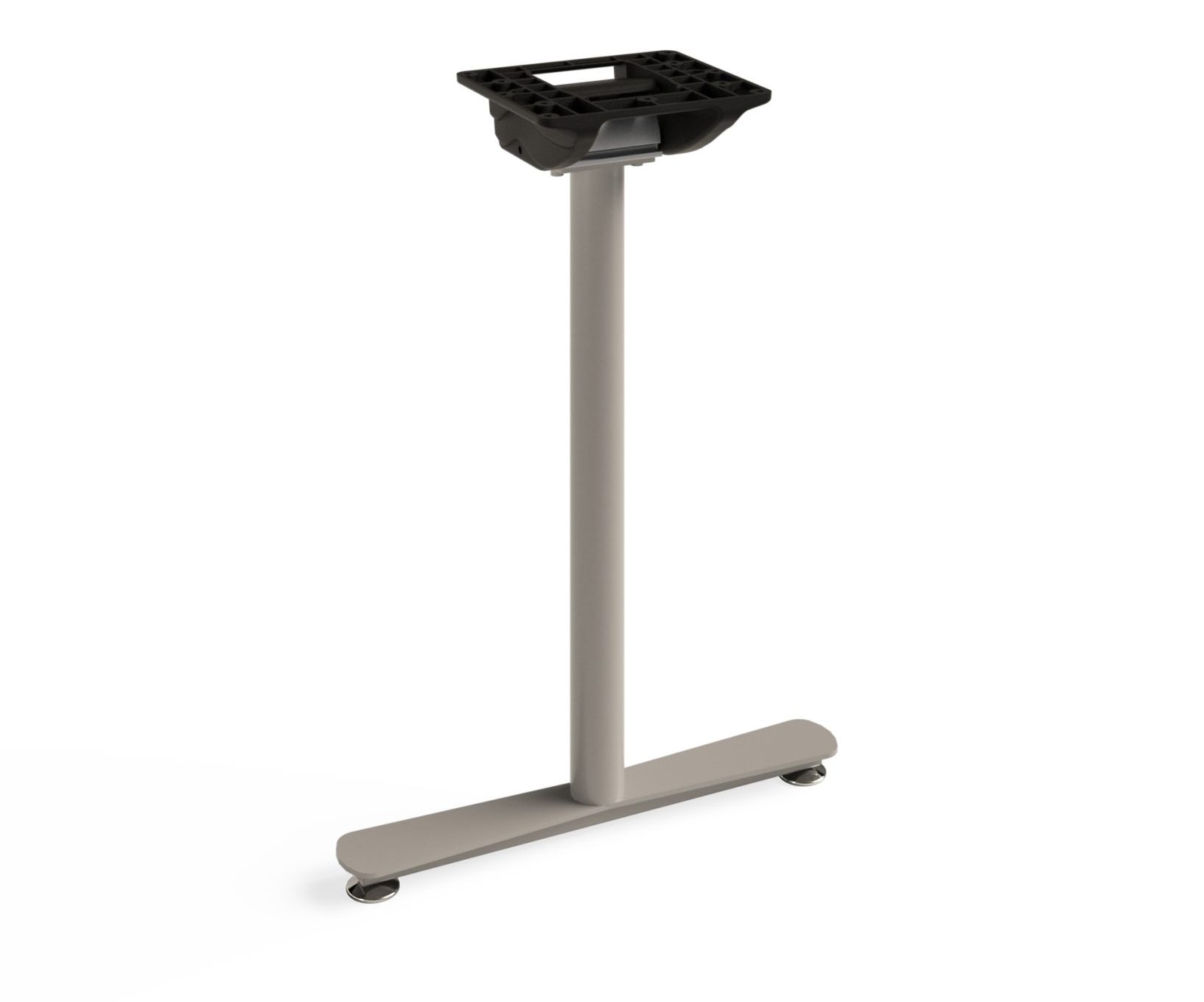

Rove T Base Folding

The patented design and parabolic foot shape of the Rove series will flow well into any setting.  The Rove Folding T Base allows the bases to fold down for easy storage. Risers are available for tops shorter than 60″ long. With options like wire holes, spring-clip adjustability, and 3″ eye-catching casters the Rove Folding T Base is ready to take your project to a whole new level.

Patented design.



Part NumberColumn SizeDiameterPlate SizeRecommended Max Top DepthBase SpreadTop SizeLengthStretcher LengthRecommended Table LengthOverall HeightSide PanelsUse With Panel Base PartStylePanel ShapeRecommended Top SizeWeight
F28202"20"16"11 lbs.
F28212"24"22"12 lbs.
F28222"36"26"14 lbs.
  • Construction: Bolted, welded combination
    • Column is welded to mounting plate
    • Column assembly bolts to foot
    • Folding mechanism is mechanically attached to base with (4) screws (supplied)
  • Column: 2″ OD, 16ga tubing
  • Base: Fabricated steel
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Risers required for one base on tables shorter than 60″, see Options.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard
  • Assembly and Shipping:
    • Assemble folding mechanism to base with (4) screws (supplied)
    • Base components ship fully assembled.
    • Parts ship 2 per box (sold individually)
    • Broken Carton Charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Special Heights:
    • Shorter, add $34 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Add prefix “C” to part #, add $39 LIST
    • Rove uses premium 75mm soft wheel casters.
    • Silver casters ship with Silver and Medium Gray bases, Black with all others
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $22 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Risers:
    • Add prefix “R” to part #, add $64 LIST
    • Risers required on one base for tables shorter than 60″
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $78 LIST
    • Height range 27-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $98 LIST
  • Wire Holes:
    • Includes (2) 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
    • Add prefix “W” to part #, add $35 LIST
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Rove T Base – Folding – Spec Sheet
