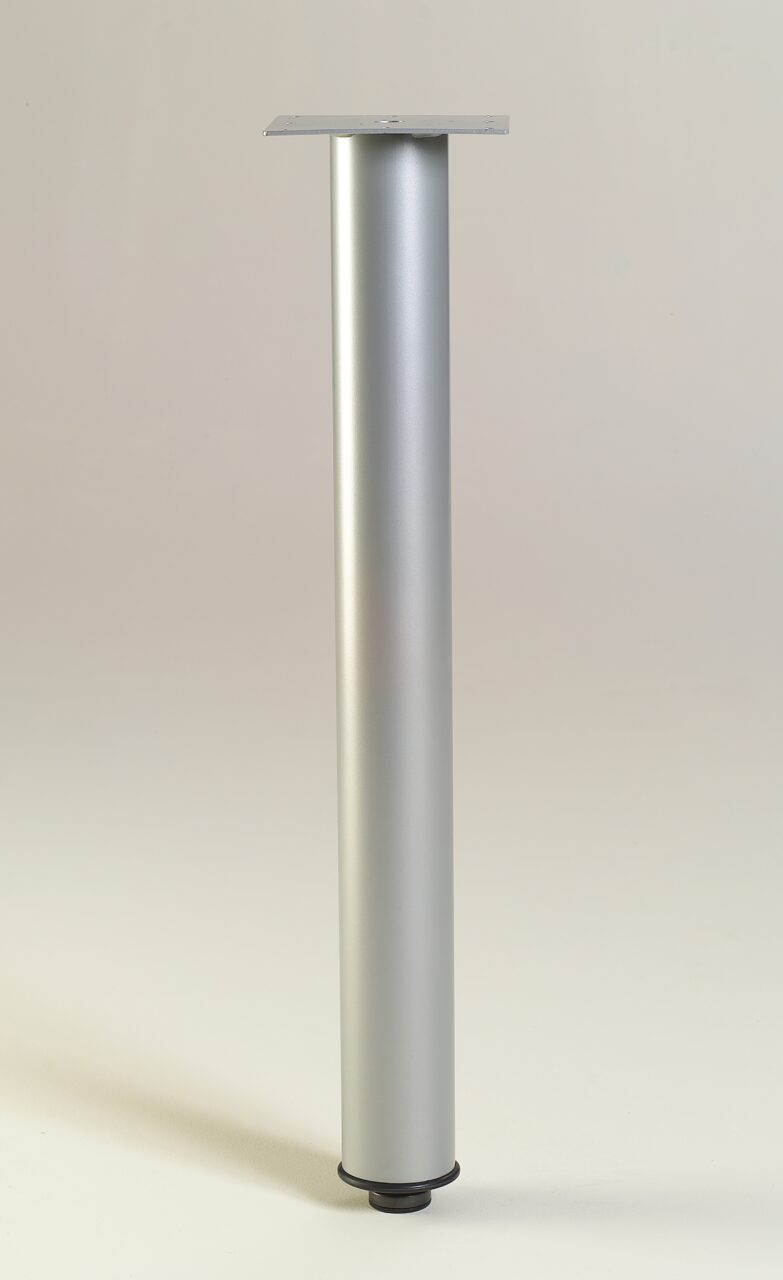

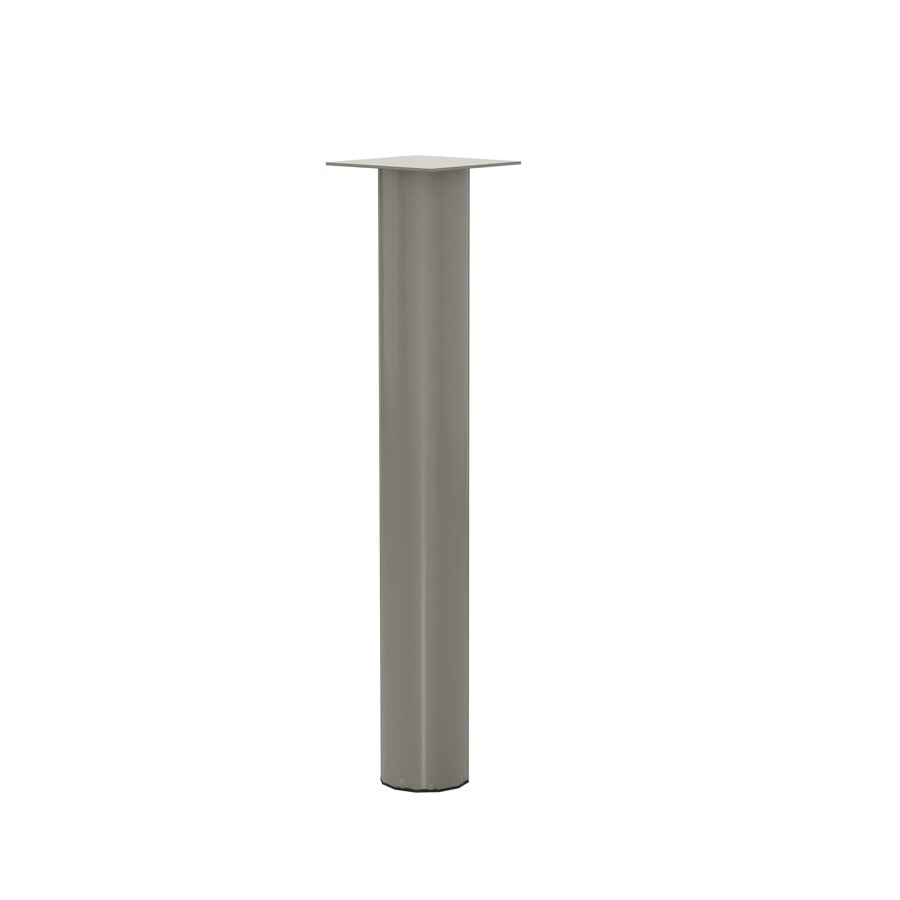

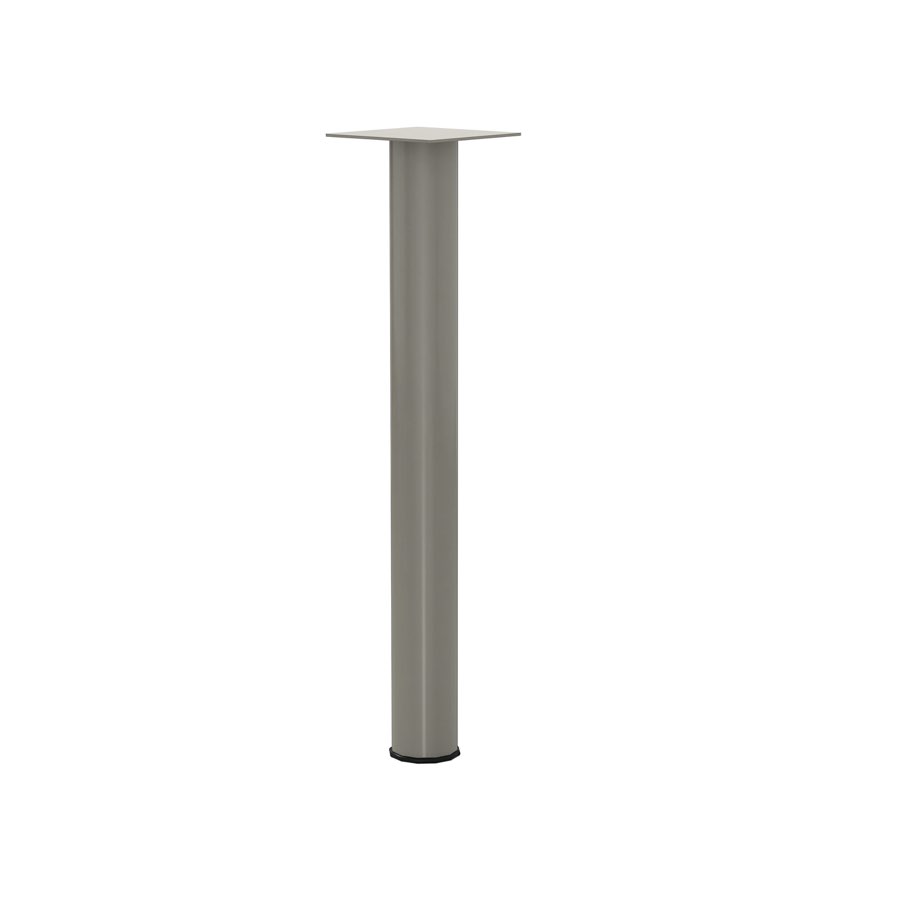

Round Legs – Economy

Our cost sensitive 3″ and 4″ legs not only offer you a lower price, they also add a design element to the bottom of the leg. The bottom of this Gibraltar leg has a visible plastic ring that is part of a larger insert that holds the leveler inside the tube. The visible ring is 1/4″ thick x 3-1/4″ diameter. The finish of the ring insert is black. Our 4″ diameter leg also has a plastic insert; this insert however is 4″ diameter, the same as the tube, and only 1/8″ thick so it is not easily visible. The finish of the insert is black.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
30243"N/AN/AN/A8 lbs.27-3/4"
40244"N/AN/AN/A9 lbs.27-3/4"
  • Construction: Welded
  • Tubing: 16ga Tube
  • Mounting Plate:
    • Center mounted on a 6″ x 6″ steel plate
    • Requires (8) #12-14 screws, not supplied
  • Base Height: 27-3/4″
  • Detail Ring
    • #3024 – black molded plastic 1/4″ thick x 3-1/4″ diameter
    • #4024 – black molded plastic 1/4″ thick x 4″ diameter
  • Adjustable Leveler: 3/8-16 x 1-3/4″ long shank
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • No assembly required
    • Parts ship 1 per box
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $4 LIST
  • Polished or Satin Chrome:
    • #3024: Standard height, add $64 LIST; Taller height, add $78 LIST
    • #4024: Standard height, add $78 LIST; Taller height, add $92 LIST
  • Special heights:
    • Shorter, add $22 LIST
    • Taller up to Bar Height same as Bar Height pricing below…
    • Bar Height (40-3/4″), add prefix “B” to part #
      • #3024 add $38 LIST
      • #4024 add $42 LIST
  • Wire Holes
    • Add prefix “W” to part #, add $40 LIST
    • (2) 1.25″ round holes, no grommets
    • For custom sizes please call
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Round Straight Leg Economy – Spec Sheet
