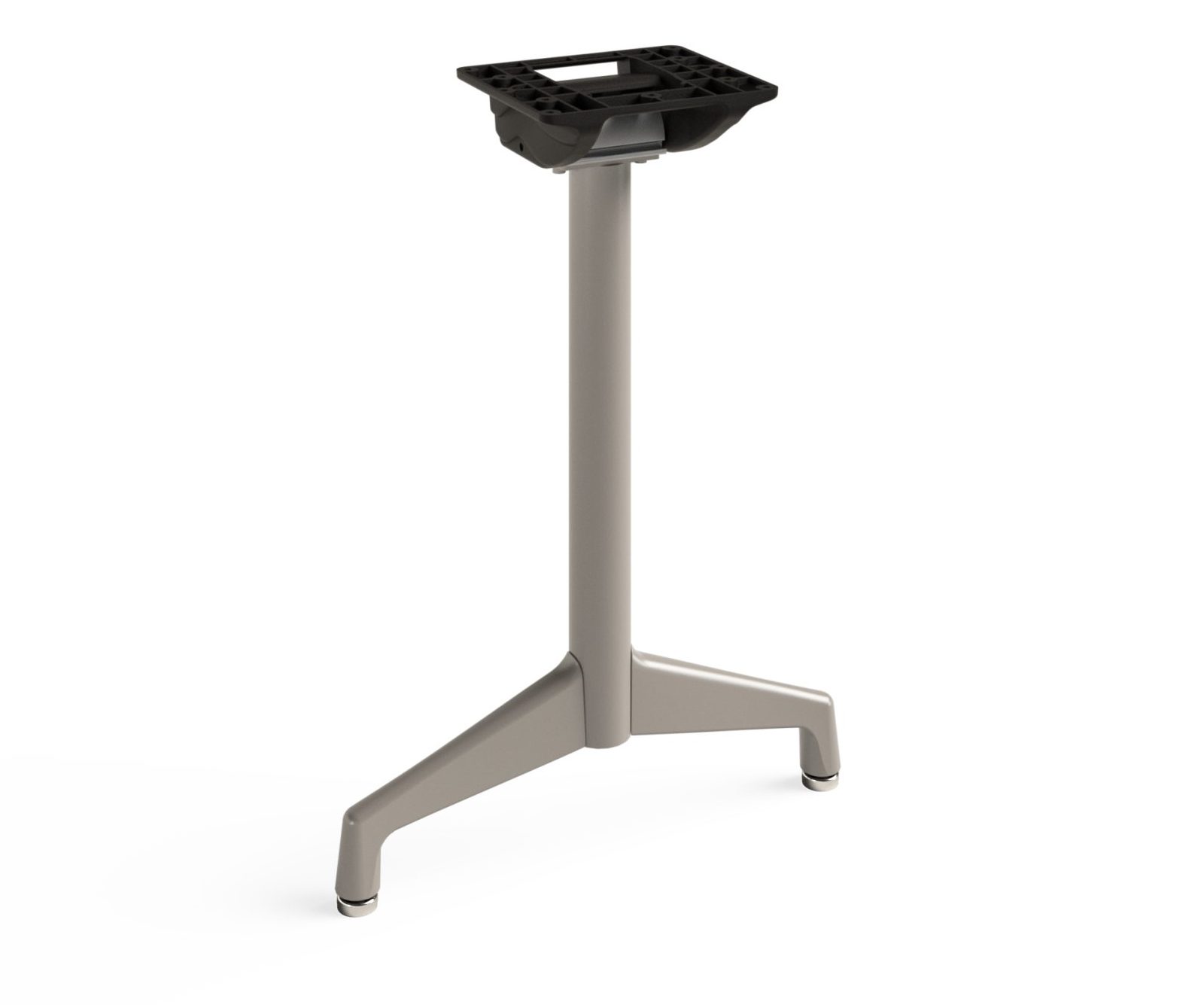

Propel T Base Folding

Functionality, classic styling, and lasting quality come together in the Propel Folding base. Using Gibraltar’s Folding mechanism, this T base allows the user to fold in the table legs for quick and easy storage. The Propel series offers a steel column with cast aluminum feet, and can be finished in powder coat, polished aluminum/chrome, satin aluminum/satin chrome, or a combination of powder coat/polished or satin finishes. Patented mechanism and patented base.



Contact Us for Pricing
Part NumberColumn SizeDiameterPlate SizeRecommended Max Top DepthBase SpreadTop SizeLengthStretcher LengthRecommended Table LengthOverall HeightSide PanelsUse With Panel Base PartStylePanel ShapeRecommended Top SizeWeight
55602-1/4"20"15-1/4"10 lbs.
55642-1/4"26"20"11 lbs.
55662-1/4"36"26"12 lbs.
55682-1/4"42"32-3/4"12 lbs.
  • Construction:
    • Bolted, welded combination
    • Folding mechanism is mechanically attached to base with (2) screws (supplied)
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Risers required on one leg for tables shorter than 60″, see Options
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard.
    • Polish and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • #5560, #5564, and #5566 column and feet ship assembled.
      • Assemble flip-top mechanism to base with (4) screws (supplied)
    • #5568 column and mechanism ship assembled.
      • Assemble feet to column with hardware supplied.
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished or Satin Chrome:
    • Standard height, add $210 LIST
    • Taller, up to bar height, add $275 LIST
    • For Chrome on AH & AHB options, add $375 LIST
  • Special Heights:
    • Shorter, add $34 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $18 LIST
    • Soft Wheel: Add prefix “D” to part #, add $24 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $22 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Risers:
    • Add prefix “R” to part #, add $64 LIST
    • Risers are required on one leg for tables shorter than 60″
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $78 LIST
    • Height range 27-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $98 LIST
  • Wire Holes:
    • Add prefix “W” to part #, add $30 LIST
    • Includes (2) wire holes with 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty
