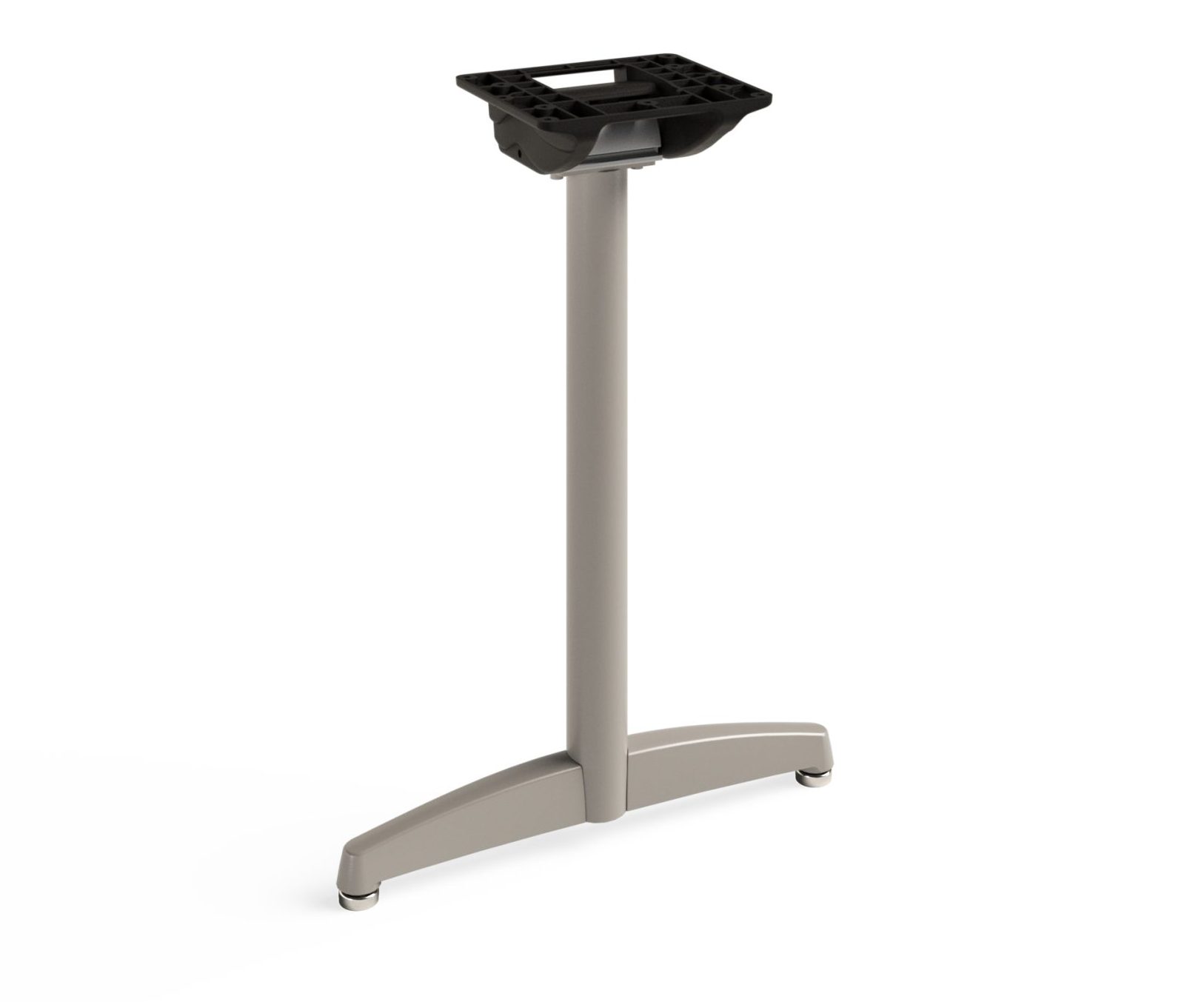

DuraCast T Base Folding

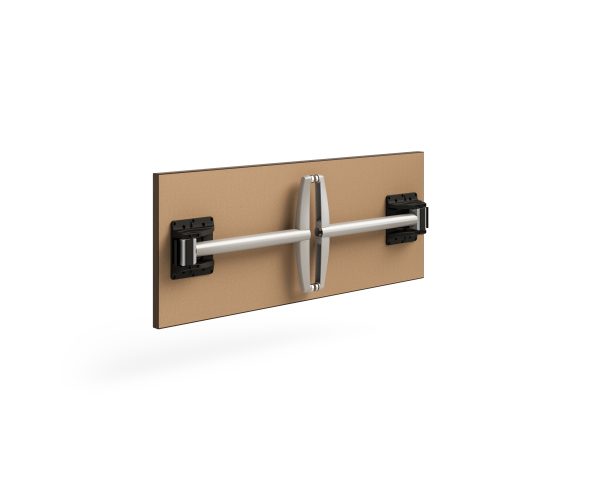

Functionality, classic styling, and lasting quality come together in the DuraCast Folding base. Using Gibraltar’s Folding mechanism, this T base allows the user to fold in the table legs for quick and easy storage. The DuraCast series offers a steel column with cast aluminum feet, and can be finished in powder coat, polished aluminum/chrome, satin aluminum/satin chrome, or a combination of powder coat/polished or satin finishes. Patented mechanism and base.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
50602-1/4" Dia.20"15-1/4"N/A10 lbs.27-3/4"
50642-1/4" Dia.26"20"N/A11 lbs.27-3/4"
50662-1/4" Dia.36"26"N/A11 lbs.27-3/4"
50682-1/4" Dia.42"33-1/4"N/A12 lbs.27-3/4"
  • Construction:
    • Bolted, welded combination
    • Folding mechanism is mechanically attached to base with (2) screws (supplied)
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Risers required for tables shorter than 60″, see Options.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish: Powder coat finish as standard.
    • Polished and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Column and feet ship assembled for parts #5060, #5064, and #5066.
    • Part #5068 ships KD, assembly of feet required.
    • Assemble flip-top mechanism to base with (2) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished and Satin finishes:
    • Standard height, add $50 LIST
    • Taller, up to bar height, add $60 LIST
  • Special heights:
    • Shorter, add $25 LIST
    • Taller up to bar height, add $35 LIST
    • Bar Height, add prefix “B” to part #, add $35 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $16 LIST
    • Soft Wheel: Add prefix “D” to part #, add $23 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Leveler Extensions:
    • Add prefix “E” to part #, add $30 LIST
    • Used in combination with casters for wheelbarrow application.
  • Risers
    • Add prefix “R” to part #, add $50 LIST
    • Risers are required on one base on tables shorter than 60″
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $76 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $96 LIST
  • Wire Holes
    • Add prefix “W” to part #, add $28 LIST
    • Includes (2) wire holes with 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

DuraCast T Base – Folding Spec Sheet
