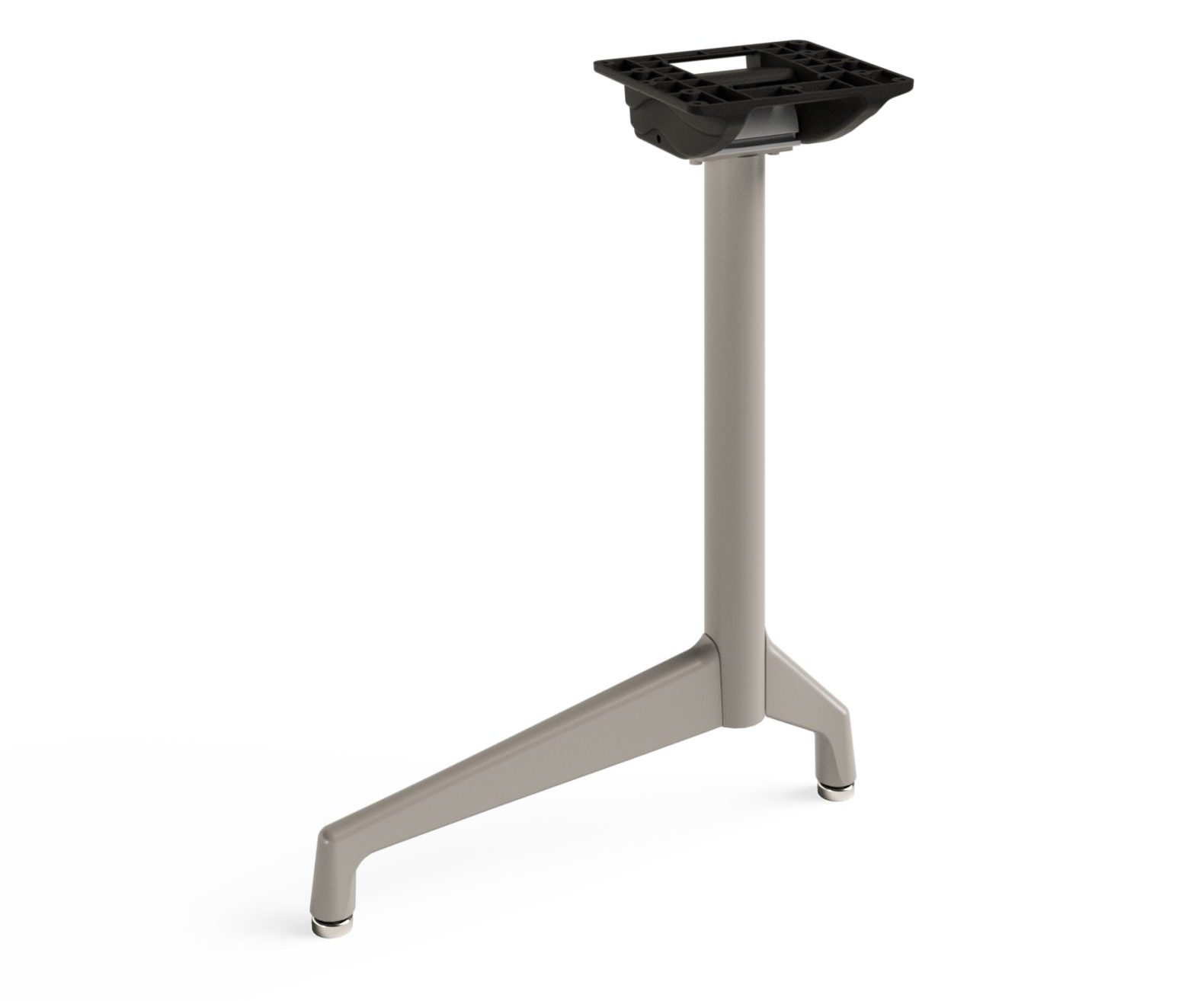

Propel C Base Folding

Functionality, classic styling, and lasting quality come together in this base. Using Gibraltar’s Folding mechanism, the user can fold in the table legs for quick and easy storage. The Propel series offers a steel column with cast aluminum feet, and can be finished in powder coat, polished aluminum/chrome, satin aluminum/satin chrome, or a combination of powder coat/polished or satin finishes. Patented base.



Contact Us for Pricing
Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
56602-1/4"20"15-1/8"10 lbs.27-3/4"
56642-1/4"26"21-1/2"11 lbs.27-3/4"
56682-1/4"32"26-3/8"11 lbs.27-3/4"
  • Construction:
    • Bolted, welded combination
    • Folding mechanism is mechanically attached to base with (4) screws (supplied)
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (11) #12-14 screws, not supplied
    • Risers required for one base on tables shorter than 60″, see Options.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard.
    • Polish and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Attached folding mechanism to base with (4) screws (supplied)
    • Parts ship 2 per box (sold individually).
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Polished or Satin Chrome:
    • Standard height, add $205 LIST
    • Taller, up to bar height, add $260 LIST
    • For Chrome on AH & AHB options, add $365 LIST
  • Special Heights:
    • Shorter, add $28 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $17 LIST
    • Soft Wheel: Add prefix “D” to part #, add $24 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Risers:
    • Add prefix “R” to part #, add $64 LIST
    • Risers required on one base for tables shorter than 60″
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $78 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $98 LIST
  • Wire Holes:
    • Add prefix “W” to part #, add $28 LIST
    • Includes (2) wire holes with 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Propel C Base – Folding – Spec Sheet
