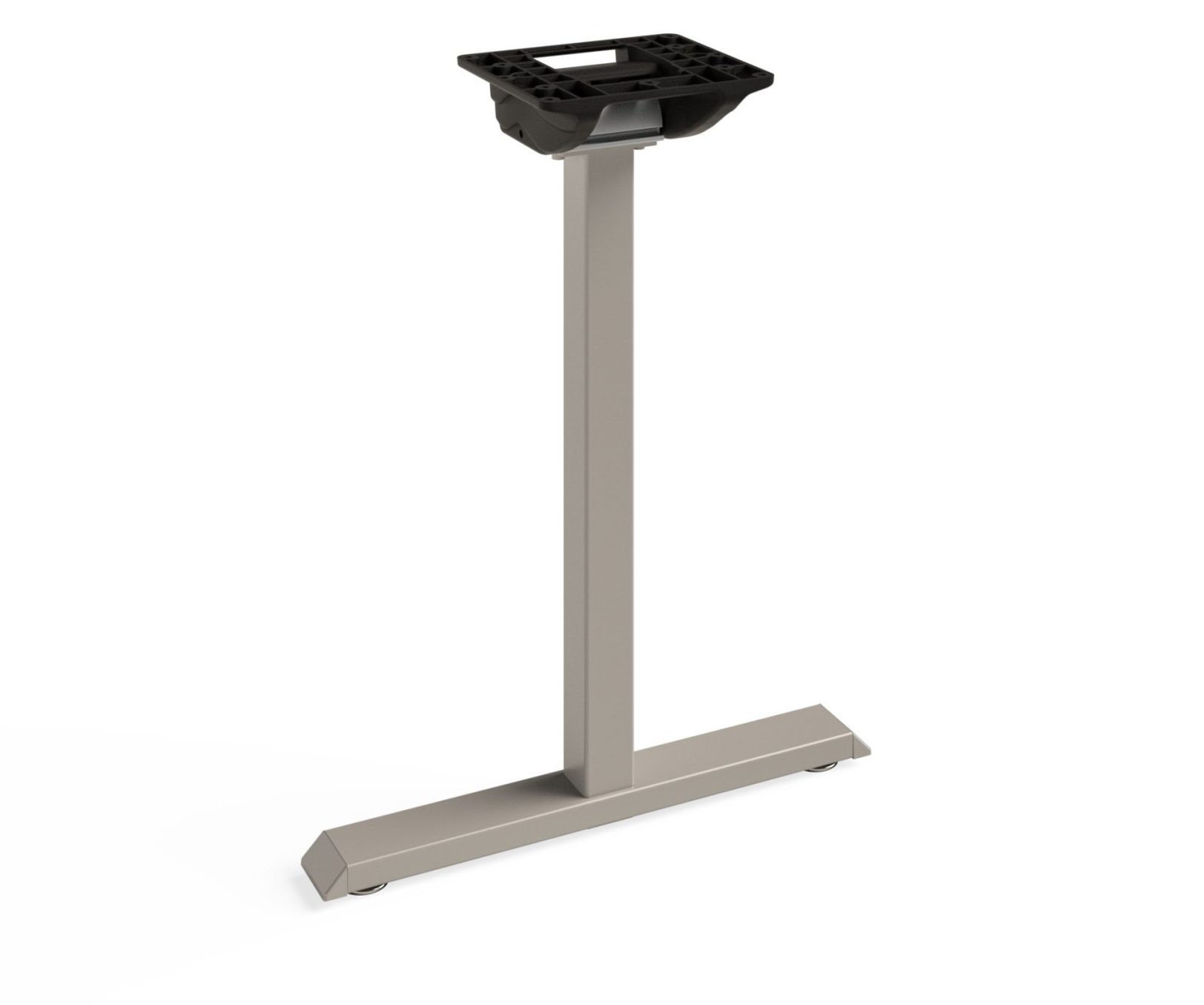

Fusion T Base Folding

Fusion is a low-profile, contemporary-styled base design that will certainly give your space and aesthetic boost.  Folding legs can be mounted on tables as short as 60.” For tables between 36″ and 59″ long, a riser bracket raises one mechanism off the table to allow one leg to fold over the other. Enjoy the look, quality, and the longevity this product offers.



Part NumberColumn SizeRecommended Max Top DepthBase SpreadTop SizeLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
F27502" sq18"16"
F27512" sq20"18"
F27522" sq26"22"
F27532" sq36"26-1/4"
  • Construction:
    • Welded Construction
    • Folding mechanism is mechanically attached to base with (2) screws (supplied)
  • Column: 2″ Square, 14ga
  • Base:
    • 1″ x 2-1/2″ steel, 14ga
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Risers are required on one leg for tables shorter than 60″, see Options.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Plastic End Caps:
    • Wedge-shaped, color matched to Gibraltar standard powder coat finishes
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Assemble folding mechanism to base with (2) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Special heights:
    • Shorter, add $34 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $16 LIST
    • Soft Wheel: Add prefix “D” to part #, add $23 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $22 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Risers:
    • Add prefix “R” to part #, add $64 LIST
    • Risers are required on one base for tables shorter than 60″
  • Wire Holes:
    • Add prefix “W” to part #, add $38 LIST
    • (2) Holes are 1-1/2″ x 2-1/4″
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Fusion T Base – Folding – Spec Sheet
