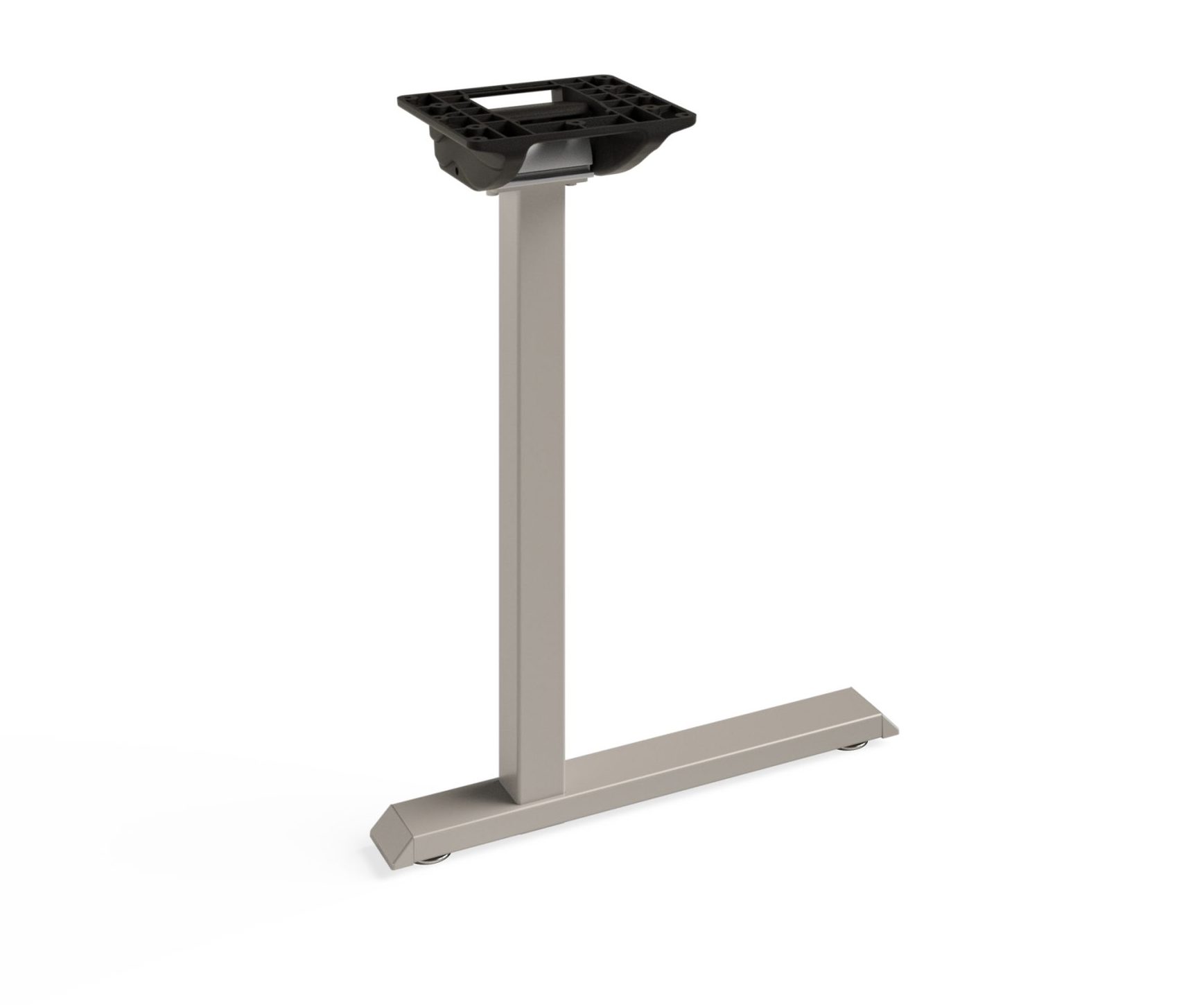

Fusion C Base Folding

Fusion is a low-profile, contemporary-styled base design that will certainly give your space and aesthetic boost.  Folding legs can be mounted on tables as short as 60.” For tables between 36″ and 59″ long, a riser bracket raises one mechanism off the table to allow one leg to fold over the other. Enjoy the look, quality, and the longevity this product offers.





Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
F27572" sq20"18"10 lbs.27-3/4"
F27582" sq26"22"11 lbs.27-3/4"
F27592" sq32"26-1/4"12 lbs.27-3/4"
  • Construction:
    • Welded Construction
    • Folding mechanism is mechanically attached to base with (2) screws (supplied)
  • Column: 2″ Square, 14ga
  • Base:
    • 1″ x 2-1/2″ steel, 14ga
    • Plastic end caps, color matched for standard finishes
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Risers required on one leg for tops shorter than 60″, see Options
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Assemble folding mechanism to base with (2) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Special heights:
    • Shorter, add $28 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $16 LIST
    • Soft Wheel: Add prefix “D” to part #, add $23 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Risers
    • Add prefix “R” to part #, add $64 LIST
    • Risers are required on one leg for tops shorter than 60″
  • Wire Holes:
    • Add prefix “W” to part #, add $35 LIST
    • (2) Holes are 1-1/2″ x 2-1/4″
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Fusion C Base – Folding – Spec Sheet
