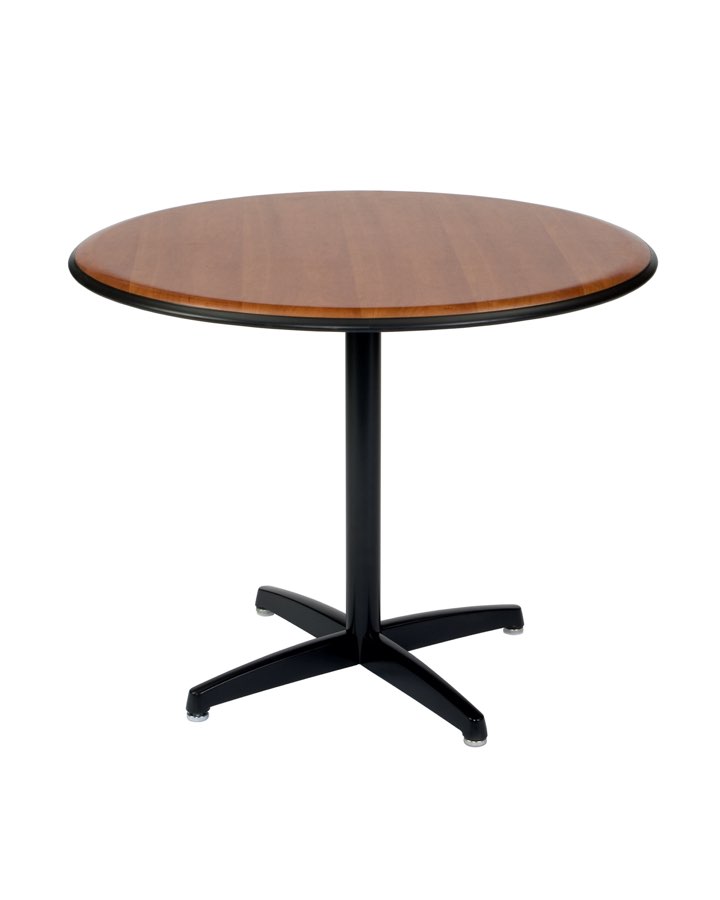

DuraCast X Base – Round/Square Application

Classic styling and lasting quality make this an economical and multi-purpose table base. The DuraCast series offers a steel column with cast aluminum feet. The X base can be finished in powder coat, polished aluminum/chrome, satin aluminum/satin chrome, or a combination of powder coat/polished or satin finishes. We offer a Flip-Top mechanism that gives the user the ability to flip up the tabletop for easy storage. Patented base.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
52202-1/4" Dia.24"rd20" x 20"14 lbs.27-3/4"
52262-1/4" Dia.36"rd26" x 26"15 lbs.27-3/4"
52332-1/4" Dia.42"rd33-1/4" x 33-1/4"16 lbs.27-3/4"
52382-1/4" Dia.54"rd38-1/4" x 38-1/4"23 lbs.27-3/4"
  • Construction: Bolted, welded combination
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Mounting Plate:
    • #5220, #5226, and #5233 use an 8″ x 8″ steel plate. Requires (10-12) #12-14 screws (not supplied)
    • #5238 uses a 12″ x 12″ plate. Requires (12) #12-14 screws (not supplied)
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish: Powder coat finish as standard.
    • Polished and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Parts ship KD, assembly of feet required
    • Parts ship 1 per box
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $10 LIST
  • Polished or Satin Chrome:
    • Standard height, add $240 LIST
    • Taller, up to bar height, add $310 LIST
    • For Chrome on AH & AHB options, add $400 LIST
  • Special heights:
    • Shorter, add $28 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $34 LIST
    • Soft Wheel: Add prefix “D” to part #, add $48 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $33 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Leveler Extensions:
    • Add prefix “E” to part #, add $60 LIST
    • Used in combination with casters for wheelbarrow application.
  • Flip-Top:
    • Add “FT” to part #, add $138 LIST
    • Max top size is 52″ with casters
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $140 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $160 LIST
  • Power Cone/Wire Management:
    • Add prefix “W” to part #, add $155 LIST
    • Includes a steel cone-shaped mounting plate: tapers from 10-1/2″ – 3″.
    • (1) wire hole at bottom of column with removable grommet.
    • Wire hole is 1-1/2″ x 2-1/4″ with grommet removed, grommet has 1-1/4″ hole in it.
  • Power Box /Wire Management (for larger power applications):
    • Add prefix “W” to part # and suffix “-0005” (ex: W5226-0005), add $177 LIST
    • Includes a steel box mounting plate: 9-5/8″ x 9-5/8″ x 2-3/4″ tall
    • (1) wire hole at bottom of column with removable grommet.
    • Wire hole is 1-1/2″ x 2-1/4″ with grommet removed, grommet has 1-1/4″ hole in it.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

DuraCast X Base – Round-Square – Spec Sheet
