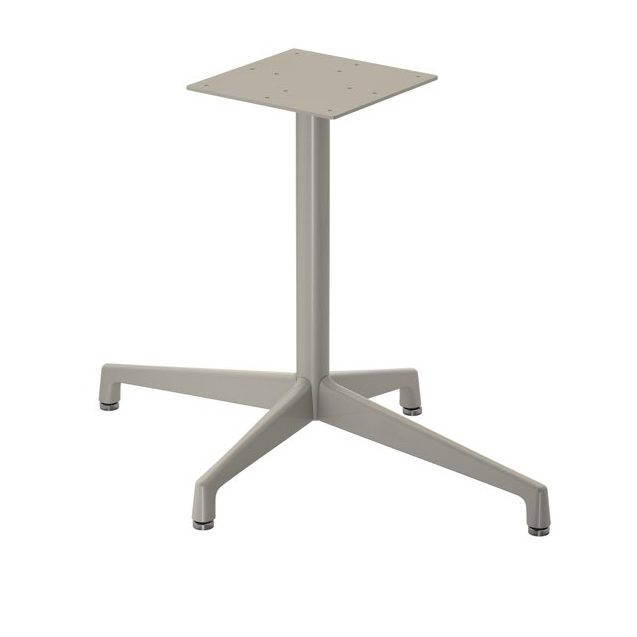

Propel X Base – Rectangle Application

Classic styling and lasting quality make this an economical and multi-purpose table base. The Propel series offers a steel column with cast aluminum feet. The X base can be finished in powder coat, polished aluminum/chrome, satin aluminum/satin chrome, or a combination of powder coat/polished or satin finishes. We offer a Flip-Top mechanism option that gives the user the ability to flip up the tabletop for easy storage. Patented base.



Part NumberColumn SizeRecommended Max Top DepthBase SpreadTop SizeLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
5720-57262-1/4"24" x 30"20" x 26"
5720-57332-1/4"24" x 36"20" x 32-3/4"
5720-57382-1/4"24" x 42"20" x 38-1/4"
5726-57332-1/4"26" x 32-3/4"
5726-57382-1/4"30" x 42"26" x 38-1/4"
5733-57382-1/4"36" x 42"32-3/4" x 38-1/4"
  • Construction: Bolted, welded combination
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Mounting Plate:
    • #5720-5726, #5720-5733, and #5726-5733 use an 8″ x 8″ steel plate. Requires (12) #12-14 screws (not supplied)
    • #5720-5738, #5726-5738, and #5733-5738 uses a 12″ x 12″ plate. Requires (12) #12-14 screws (not supplied)
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard.
    • Polish and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Parts ship KD, assembly of feet required
    • Parts ship 1 per box
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $10 LIST
  • Polished or Satin Chrome:
    • Standard height, add $245 LIST
    • Taller, up to bar height, add $320 LIST
    • Chrome on AH & AHB options, not available
  • Special Heights:
    • Shorter, add $35 LIST
    • Taller up to bar height, add $44 LIST
    • Bar Height, add prefix “B” to part #, add $44 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $36 LIST
    • Soft Wheel: Add prefix “D” to part #, add $48 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $37 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Flip-Top:
    • Add prefix “FT” to part #, add $145 LIST
    • Maximum top size is 48″ with levelers & 46″ with casters
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $150 LIST
    • Height range 27-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $165 LIST
  • Wire Management Cone:
    • Add prefix “W” to part #, add $168 LIST
    • Includes a steel cone-shaped mounting plate: tapers from 10-1/2″ – 3″.
    • (1) wire hole at bottom of column with removable grommet.
    • Wire hole is 1-1/2″ x 2-1/4″ with grommet removed, grommet has 1-1/4″ hole in it.
  • Wire Management Box (for larger power applications):
    • Add prefix “W” to part # and suffix “-0005” (ex: W5726-5733-0005), add $180 LIST
    • Includes a steel box mounting plate: 9-5/8″ x 9-5/8″ x 2-3/4″ tall
    • (1) wire hole at bottom of column with removable grommet.
    • Wire hole is 1-1/2″ x 2-1/4″ with grommet removed, grommet has 1-1/4″ hole in it.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Propel X Base – Rectangle – Spec Sheet
