Propel Double Y Base

Part Number	Column Size	Diameter	Plate Size	Recommended Max Top Depth	Base Spread	Top Size	Length	Stretcher Length	Recommended Table Length	Overall Height	Side Panels	Use With Panel Base Part	Style	Panel Shape	Recommended Top Size	Weight
S5643	2-1/4"			48"	32-3/4"											20 lbs.
S5644	2-1/4"			60"	37-1/2"											21 lbs.
S5645	2-1/4"			72"	41-1/2"											22 lbs.

Construction: Bolted, welded combination
Tubing:
- Column: 2-1/4″ OD x 13ga tubing
- Feet: Cast aluminum
Mounting Plate:
- (2) 6″ x 8″ steel plates
- Requires (12-16) #12-14 screws per base (not supplied)
Base Height: 27-3/4″
Adjustable Leveler: 3/8-16 x 3/4″ long shank.
Stretchers: Required for strength, sold separately.
Finish:
- Powder coat finish as standard.
- Polished and Satin options are a combination of chrome (column) and aluminum (feet)
Assembly and Shipping:
- Ships KD, assembly of feet required
- Ships 1 per box
- Can be shipped via FedEx or UPS

Unfinished/Raw: subtract $8 LIST
Chrome:
- Polish: Stnd Ht: add $420 LIST, Taller Ht: add $445 LIST
  Satin: Stnd Ht: add $468 LIST, Taller Ht: add $493 LIST
Special Heights:
- Shorter, add $60 LIST
- Taller up to bar height, add $74 LIST
- Bar Height, add prefix “B” to part #, add $74 LIST
Casters:
- Hard Wheel: Add prefix “C” to part #, add $18 LIST
- Soft Wheel: Add prefix “D” to part #, add $24 LIST
Self-Leveling Glides:
- Add prefix “K” to part #, add $22 LIST
- Self-Leveling glides do add 1/2″ to base height
Wire Holes:
- Add prefix “W” to part #, add $38 LIST
- Includes (2) wire holes with 1-1/4″ removable grommets on ONE column.
- Holes are 1-1/2″ x 2-1/4″ with grommets removed.
- For wire holes in both columns please specify and call. Price is per column.

List quantity, part #, description, finish, and price.
All prices are FOB our facility, please specify your preferred method of shipment
Specify shipping and billing address
Please read terms and warranty

Propel Double Column Y Base – Spec Sheet

The Propel Double Y base brings the Y base design to larger table sizes. The Propel series offers a steel column with cast aluminum feet, and can be finished in powder coat, polished aluminum/chrome, satin aluminum/satin chrome, or a combination of powder coat/polished or satin finishes. Patented base. Stretchers sold separately.

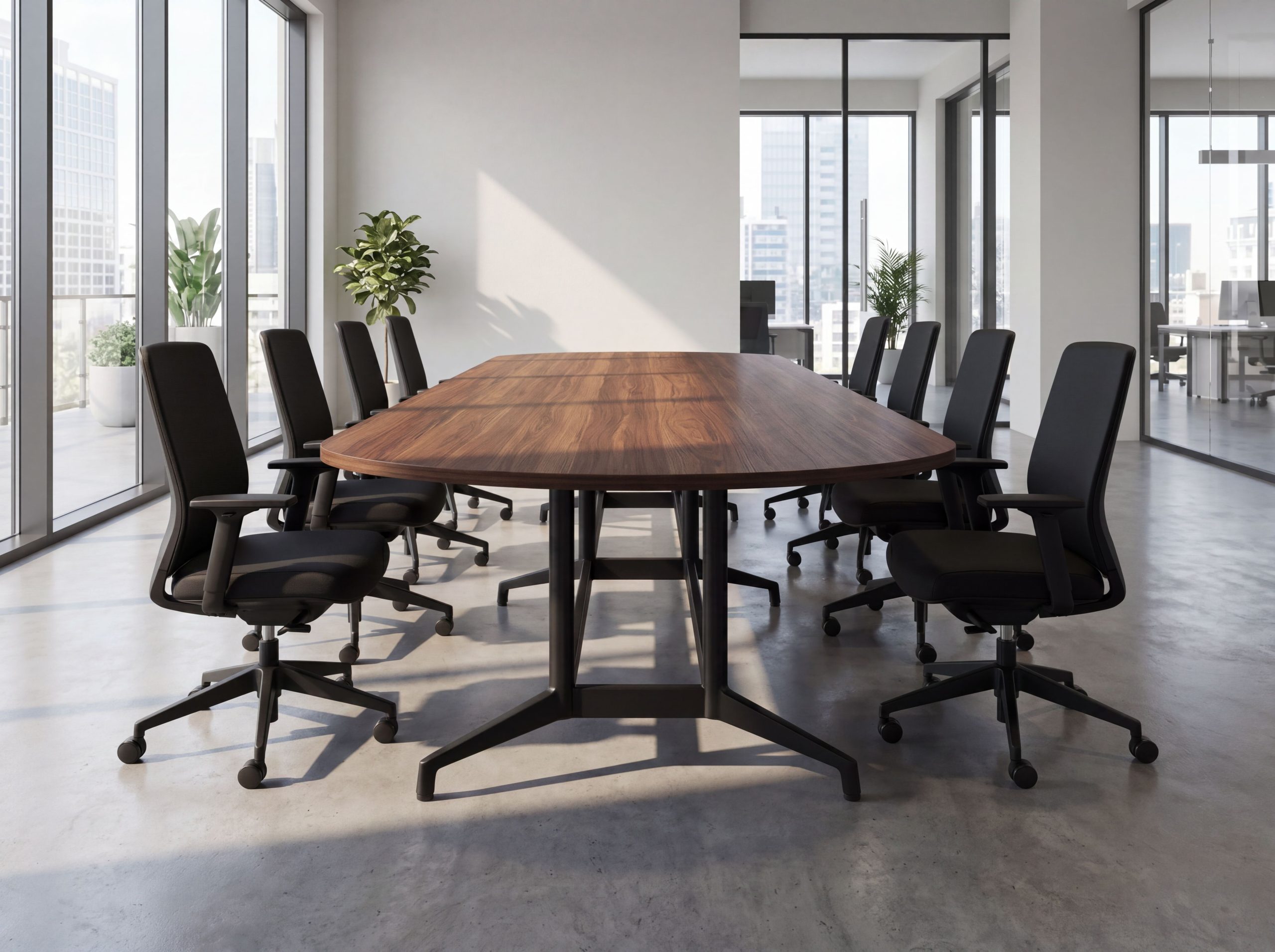

Propel Double Y Base

Propel Double Y Base - Image 2
