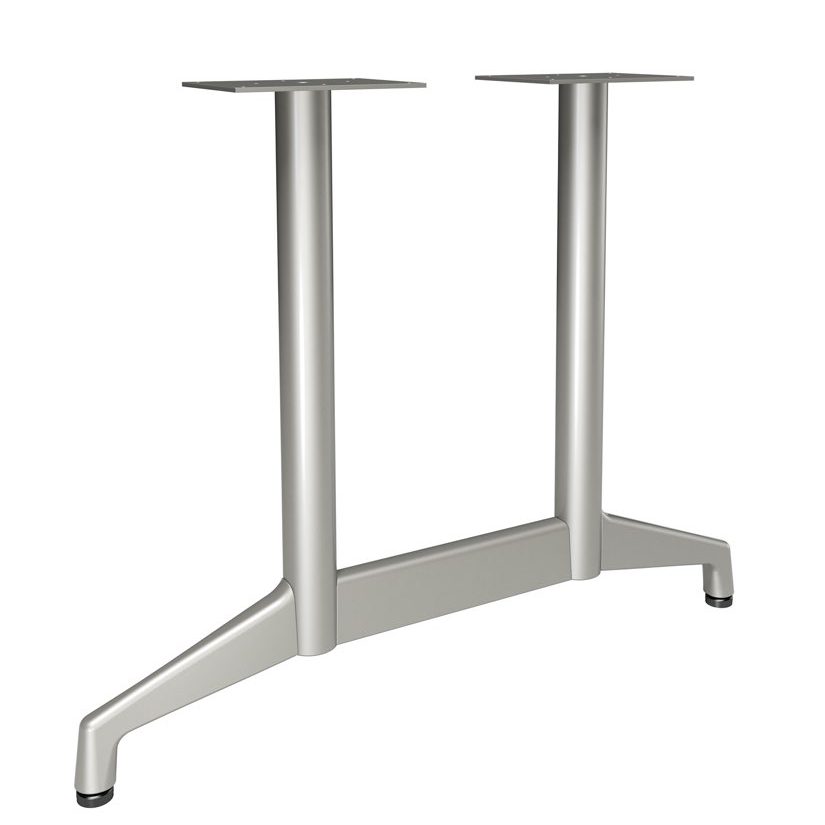

Propel Double T Base

The Propel Double T base brings a great new look to tables. The Propel series offers a steel column with cast aluminum feet, and can be finished in powder coat, polished aluminum/chrome, satin aluminum/satin chrome, or a combination of powder coat/polished or satin finishes. This leg is available with a folding option that uses Gibraltar’s Folding mechanism. Patented base. Stretchers sold separately.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall HeightSide PanelsPanel ShapePanel StyleRecommended Top Size
55962-1/4"48" rect / 60" rd34"20 lbs.27-3/4"
55982-1/4"60" rect / 72" rd40"21 lbs.27-3/4"
  • Construction: Bolted, welded combination
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Mounting Plate:
    • (2) Steel plates, 6″ x 8″.
    • Requires (16) #12-14 screws per base (not supplied)
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard.
    • Polish and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Ships KD, assembly required
    • Ships 1 per box
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $8 LIST
  • Polished or Satin Chrome:
    • Standard height, add $390 LIST
    • Taller, up to bar height, add $485 LIST
    • For Chrome on AH & AHB options, add $550 LIST
  • Special Heights:
    • Shorter, add $54 LIST
    • Taller up to bar height, add $74 LIST
    • Bar Height, add prefix “B” to part #, add $74 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $17 LIST
    • Soft Wheel: Add prefix “D” to part #, add $24 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $156 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $196 LIST
  • Wire Holes:
    • Add prefix “W” to part #, add $28 LIST
    • Includes (2) wire holes with 1-1/4″ removable grommets in ONE column
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
    • Adding wire holes to both columns please specify or call (price doubles)
  • Folding Option:
    • Add prefix “F” to part #, add $296 LIST
    • For 60″ round tables and square/rectangle tables shorter than 60″ risers are needed on one leg.
      • To order, add prefix “R” to part #, add $128 LIST
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Propel TT Base – Spec Sheet
