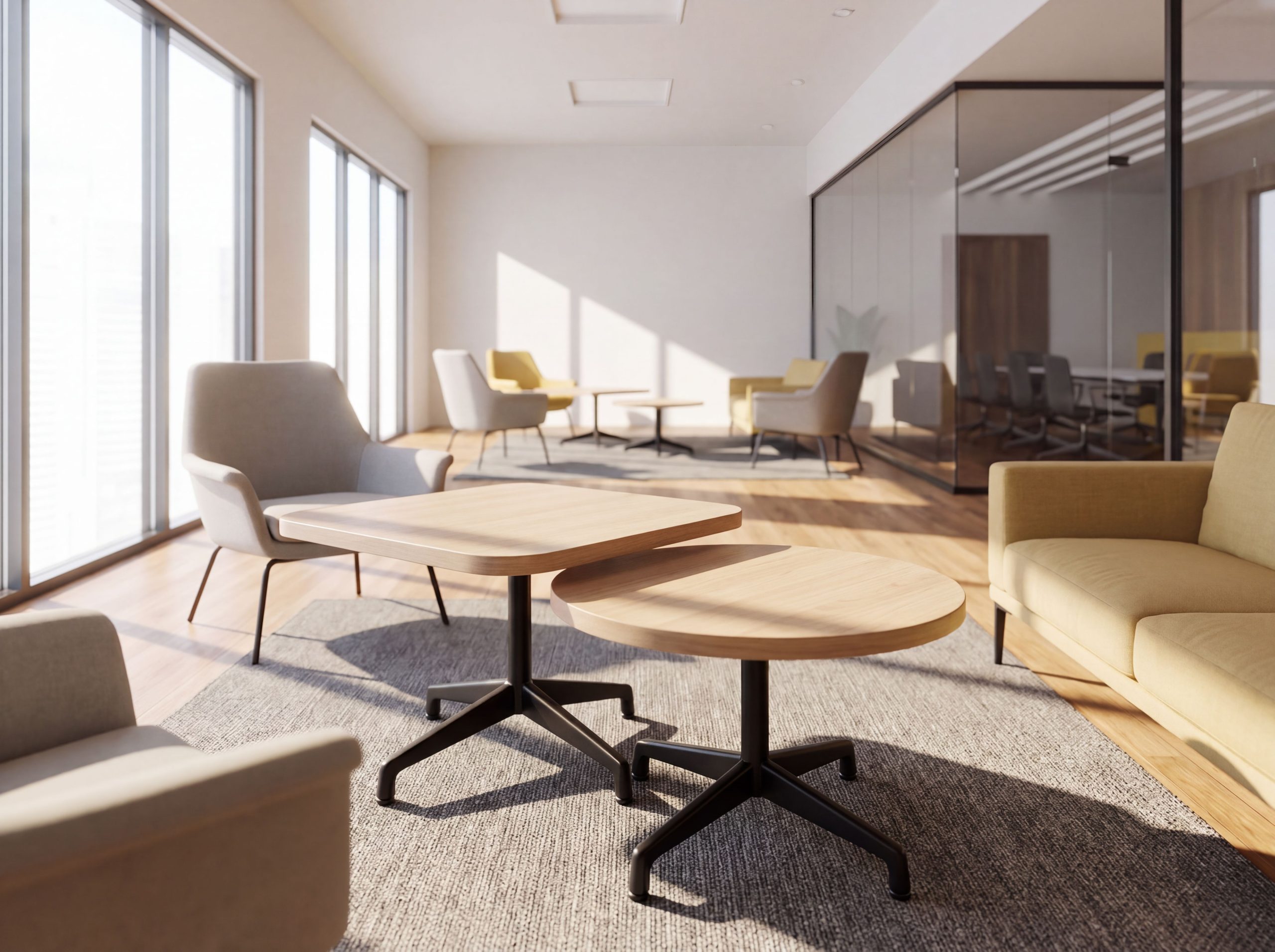

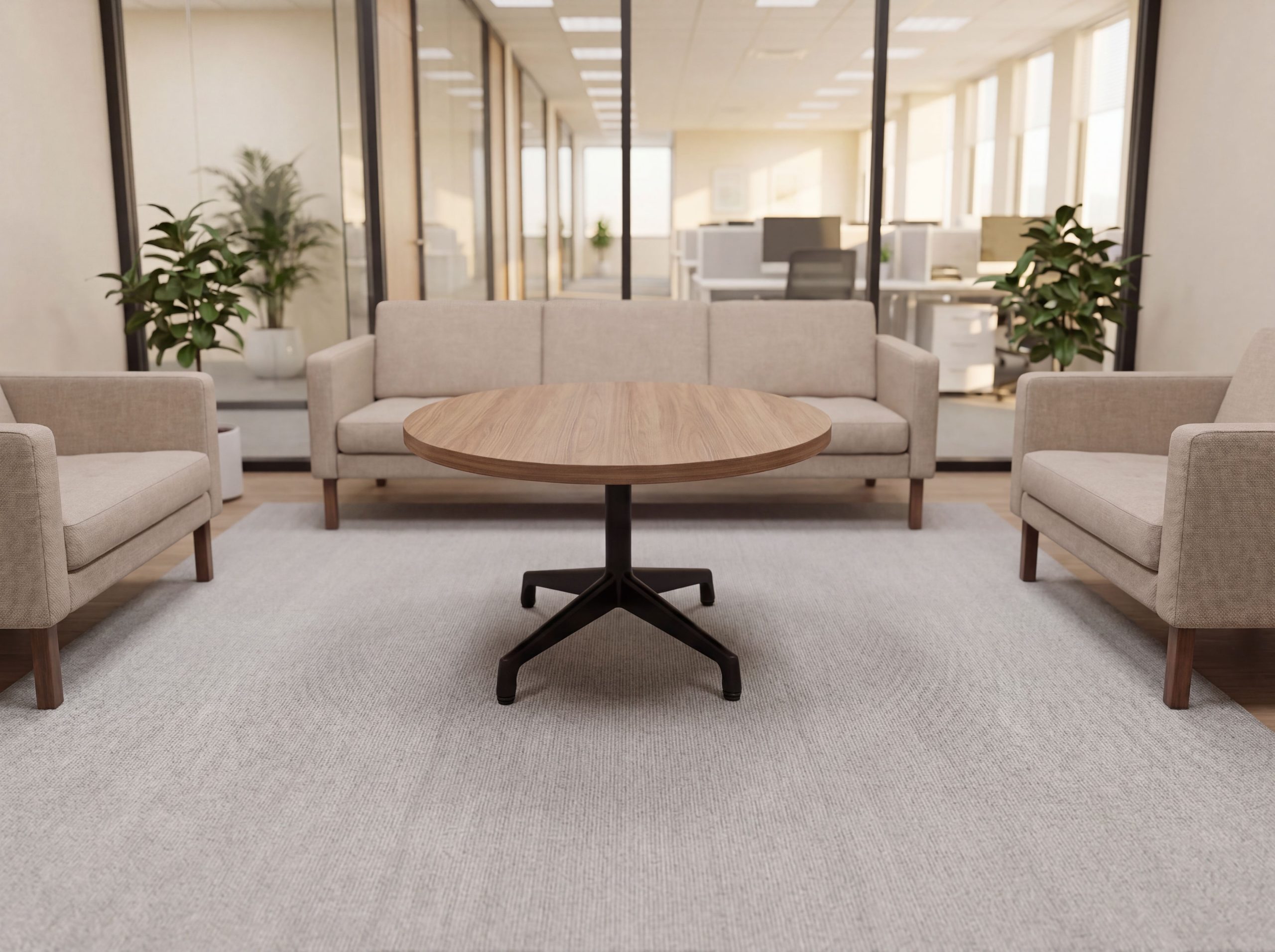

Occasional Table Bases, Propel Series

Occasional table bases with classic design detail.



Part NumberColumn SizeDiameterPlate SizeRecommended Max Top DepthBase SpreadTop SizeLengthStretcher LengthRecommended Table LengthOverall HeightSide PanelsUse With Panel Base PartStylePanel ShapeRecommended Top SizeWeight
1305-10012-1/4"20" rd15-1/4" x 15-1/4"15"14 lbs.
1305-10022-1/4"20" rd15-1/4" x 15-1/4"17"14 lbs.
1305-10032-1/4"20" rd15-1/4" x 15-1/4"19"14 lbs.
1305-10062-1/4"24" rd20" x 20"15"15 lbs.
1305-10072-1/4"24" rd20" x 20"17"15 lbs.
1305-10082-1/4"24" rd20" x 20"19"15 lbs.
1305-10112-1/4"36" rd26" x 26"15"16 lbs.
1305-10122-1/4"36" rd26" x 26"17"16 lbs.
1305-10132-1/4"36" rd26" x 26"19"16 lbs.
1305-10162-1/4"42" rd32-3/4" x 32-3/4"15"17 lbs.
1305-10172-1/4"42" rd32-3/4" x 32-3/4"17"17 lbs.
1305-10182-1/4"42" rd32-3/4" x 32-3/4"19"17 lbs.
1305-10212-1/4"48" rd38-1/4" x 38-1/4"15"19 lbs.
1305-10222-1/4"48" rd38-1/4" x 38-1/4"17"19 lbs.
1305-10232-1/4"48" rd38-1/4" x 38-1/4"19"19 lbs.
  • Construction: Bolted, welded construction
  • Column: 2-1/4″ tubing OD x 13 ga.
  • Base: Cast aluminum
  • Mounting Plate:
    • Steel, 8″ x 8″
    • Requires (12) #12-14 screws, not supplied
  • Finish: Powder coat finish as standard.
  • Mounting Orientation: for max. top size square tables, mount the base with feet facing the corners
  • Assembly and Shipping:
    • Parts ship KD, assembly required.
    • Ships 1 pc. per box
    • Can be shipped via UPS or FedEx
  • Unfinished/Raw: Subtract $10 LIST
  • Chrome or Satin Chrome: add $245 LIST
  • List quantity, part #, description finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Occasional Propel X Base – Spec Sheet
