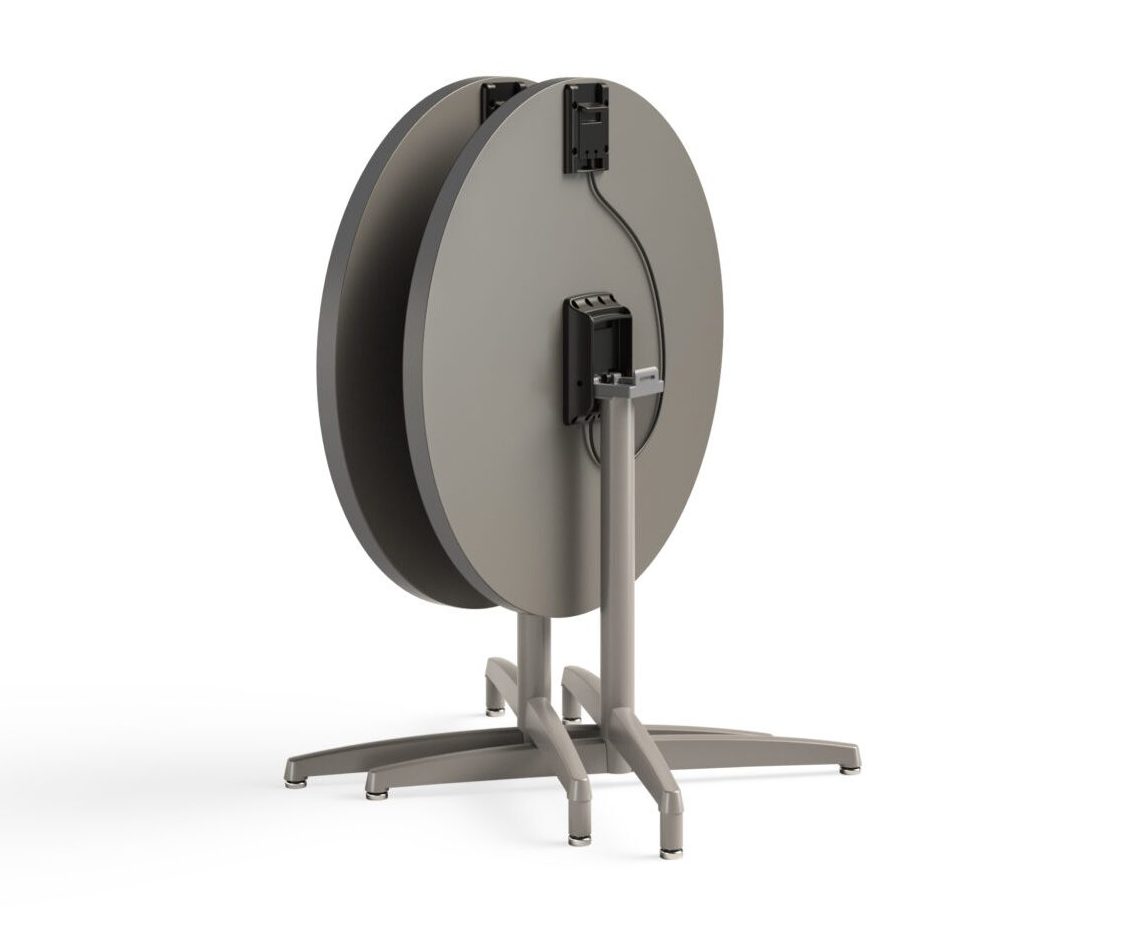

DuraCast Nesting X Base – Round/Square Application

Part Number	Column Size	Diameter	Plate Size	Recommended Max Top Depth	Base Spread	Top Size	Length	Stretcher Length	Recommended Table Length	Overall Height	Side Panels	Use With Panel Base Part	Style	Panel Shape	Recommended Top Size	Weight
5320	2-1/4" Dia.			24"rd/sq	20" x 20"											17 lbs.
5326	2-1/4" Dia.			30"rd/sq	26" x 26"											18 lbs.
5333	2-1/4" Dia.			36"rd/sq	33-1/4" x 33-1/4"											18 lbs.

Construction: Bolted, welded combination
Tubing:
- Column: 2-1/4″ OD x 13ga tubing
- Feet: Cast aluminum
Flip-Top Mechanism:
- Mechanism is injection molded aluminum and steel
  - Requires (8) #12-14 screws (not supplied)
- Handle release is included and ships attached
  - Requires (4) #12-14 screws (not supplied)
Base Height: 27-3/4″
Adjustable Leveler: 3/8-16 x 3/4″ long shank.
Finish:
- Powder coat finish as standard.
- Polished and Satin options are a combination of chrome (column) and aluminum (feet)
Assembly and Shipping:
- Ship KD, assembly of feet required
- Ships 1 per box
- Can be shipped via FedEx or UPS

Unfinished/Raw: subtract $10 LIST
Special Heights:
- Shorter, add $46 LIST
  - Flipping may be hindered depending on the height, call to discuss.
- Taller up to bar height, add $70 LIST
- Bar Height, add prefix “B” to part #, add $70 LIST
Casters:
- Hard Wheel: Add prefix “C” to part #, add $36 LIST
- Soft Wheel: Add prefix “D” to part #, add $48 LIST
Self-Leveling Glides:
- Add prefix “K” to part #, add $37 LIST
- Self-Leveling glides do add approx. 1/2″ to base height

List quantity, part #, description, finish, and price.
All prices are FOB our facility, please specify your preferred method of shipment
Specify shipping and billing address
Please read terms and warranty

DuraCast Nesting X Base – Spec Sheet

Classic styling and lasting quality make the DuraCast Nesting X base an easy choice when you need a nesting table. With options for casters, your needs and desires for a great functioning base full of style and class are fulfilled right here. A mechanism that is smooth to the touch also offers safety and comfort to the user. Patented base.

DuraCast Nesting X Base - Round/Square Application
