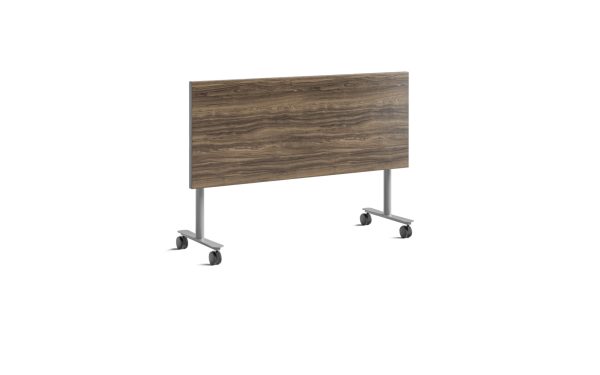

Rove T Base Flip-Top

The Rove Flip-Top T Base allows the top to flip up vertically for quick transitions between spaces. Rove’s patented design with a parabolic foot shape is subtle enough to work in the most static of environments, yet bold enough to catch the eye of those looking for a high-end contemporary feel. It truly can wander into nearly any space and find its home aesthetically. With options like wire holes, spring-clip adjustability, and 3″ eye-catching casters the Rove Flip-Top T Base is ready to take your project to a whole new level.

Patented design.



Part NumberColumn SizeDiameterPlate SizeRecommended Max Top DepthBase SpreadTop SizeLengthStretcher LengthRecommended Table LengthOverall HeightSide PanelsUse With Panel Base PartStylePanel ShapeRecommended Top SizeWeight
H28202"20"11 lbs.
H28212"24"12 lbs.
H28222"14 lbs.
  • Construction: Bolted, welded combination
    • Column is welded to mounting plate
    • Column assembly bolts to “T” assembly
    • Flip-Top mechanism is mechanically attached to base with (4) screws (supplied)
  • Column: 2″ OD, 14ga tubing
  • Base: Fabricated steel
  • Flip-Top Mechanism:
    • Available in Silver and Black
      • Silver housings ship with silver and medium grey finishes.
      • Black housings ship with all other standard base finishes.
    • Mechanism is injection molded, aluminum and steel
      • Requires (8) #12-14 screws (not supplied)
    • Handle release is included and ships attached with standard length cables.
      • Requires (4) #12-14 screws (not supplied)
      • For tables longer than 60″, please call for solutions
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish:
    • Powder coat finish as standard
  • Assembly and Shipping:
    • Bases ship assembled.  Attach flip-top mechanism to base, screws supplied
    • Parts ship 2 per box (sold individually)
    • Broken Carton Charge for odd quantities $20 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6 LIST
  • Special Heights:
    • Shorter, add $34 LIST
    • Taller up to bar height, add $38 LIST
    • Bar Height, add prefix “B” to part #, add $38 LIST
  • Casters:
    • Add prefix “C” to part #, add $39 LIST
    • Rove uses premium 75mm soft wheel casters.
    • Silver casters ship with Silver and Medium Gray bases, Black with all others
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $22 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $78 LIST
    • Height range 27-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $98 LIST
  • Wire Holes:
    • Includes (2) 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
    • Add prefix “W” to part #, add $35 LIST
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty

Rove T Base – Flip-Top – Spec Sheet
