Round H Leg

Design, style and value merge in this distinctive Gibraltar table leg. For those who desire a distinguished look, and have a need for endurance and stability, this leg hits the mark.



Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
22082"N/A8"N/A13 lbs.27-3/4"
22002"22"11"N/A15 lbs.27-3/4"
22142"24"14-1/4"N/A15 lbs.27-3/4"
22202"36"20"N/A18 lbs.27-3/4"
33143"24"14-1/4"N/A17 lbs.27-3/4"
33203"36"20"N/A19 lbs.27-3/4"
33243"48"24"N/A21 lbs.27-3/4"
44244"48"24"N/A30 lbs.27-3/4"
44304"60"30"N/A34 lbs.27-3/4"
  • Construction: Welded
  • Column:
    • 2″ tube is 14 ga
    • 3″ and 4″ tube is 16 ga
  • Mounting Plate:
    • #2208 has a 6″ x 11-1/2″ steel plate
      • Requires (8) #12-14 screws, not supplied

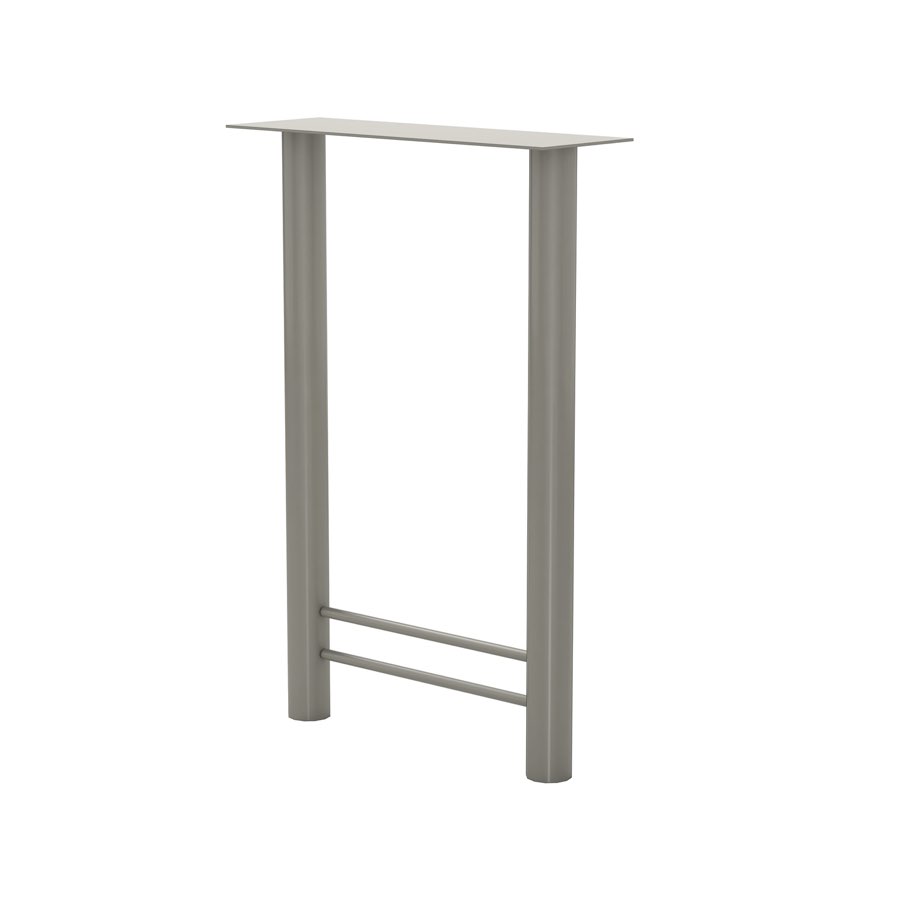

    • #2214 and #3314 use a 6″ x 18″ steel plate
      • Requires (8) #12-14 screws, not supplied

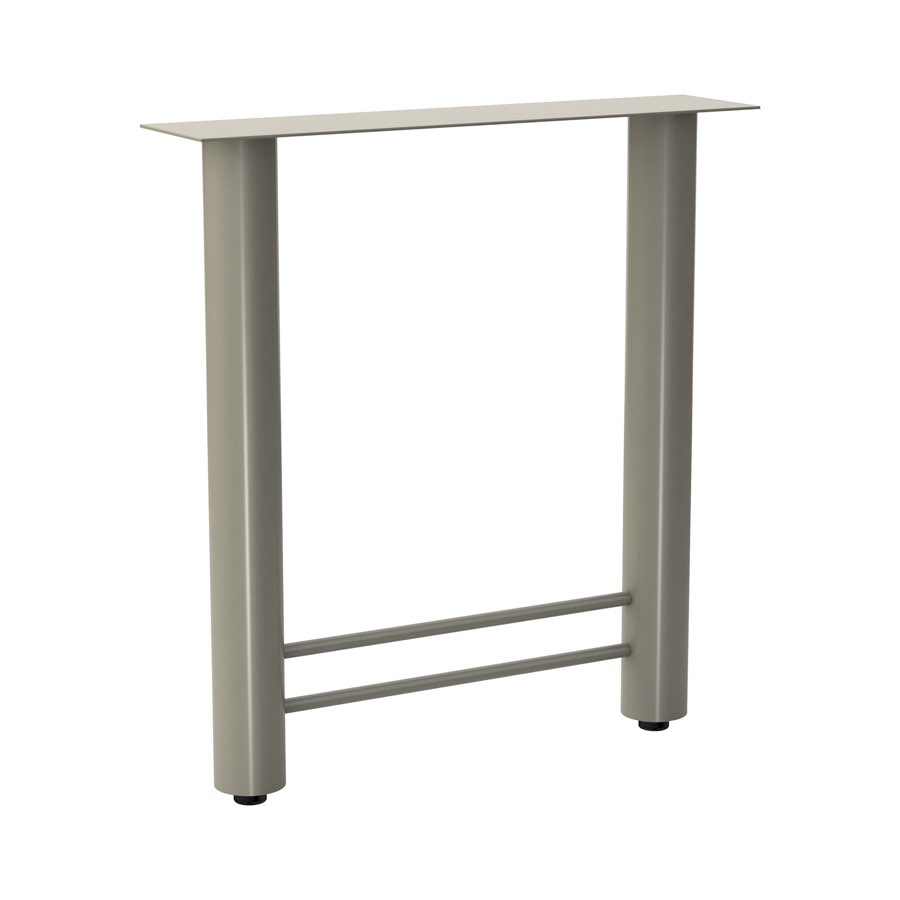

    • #2220 and #3320 use a 6″ x 26″ steel plate
      • Requires (10) #12-14 screws, not supplied
    • #3324 uses (2) 6″ x 6″ steel plates
      • Requires (16) #12 – 14 screws per base, not supplied

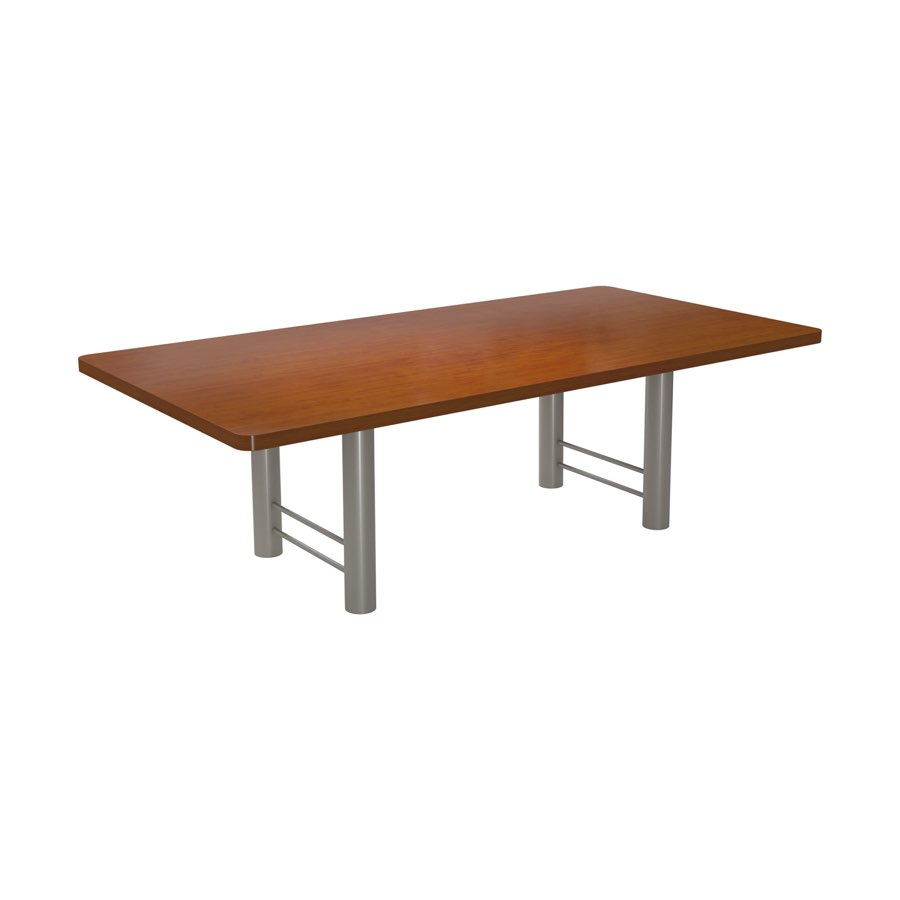

    • #4424 and #4430 use (2) 8″ x 8″ steel plates
      • Requires (16) #12-14 screws per base, not supplied
  • Base Height: 27-3/4″
  • Adjustable Leveler:
    • #2208, #2214, and #2220 have a 1/4-20 x 1-3/4″ long shank
    • #3314, #3320, #3324, #4424, and #4430 have a 3/8-16 x 1-3/4″ long shank
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Parts ship fully welded
    • Parts ship 1 per box
    • Most can be shipped via FedEx or UPS
      • #4430 is recommended to ship via LTL due to size
  • Unfinished/Raw: subtract $8 LIST
  • Special heights:
    • Shorter, add $34 LIST
    • Taller up to Bar Height same as Bar Height pricing below…
    • Bar Height (40-3/4″), add prefix “B” to part #
      • #2214 and #2220 add $44 LIST
      • #3314, #3320, and #3324 add $60 LIST
      • #4424 and #4430 add $90 LIST
  • Casters:
    • Hard Wheel: Add prefix “C”to part #…
      • #2208, #2200, #2214, and #2220 add $22 LIST (60mm)
      • #3314, #3320, and #3324 add $28 LIST (75mm)
      • #4424 and #4430 add $44 (100mm)
    • Soft Wheel:
      • Add prefix “D” to part #
      • #2208, #2200, #2214, and #2220 add $27 LIST (60mm)
      • #3314 and #3324: Call to discuss
      • Not available on #4424 and #4430
  • Adjustable Spring Clip:
    • Available on part #2208, #2200, #2214, and #2220 ONLY

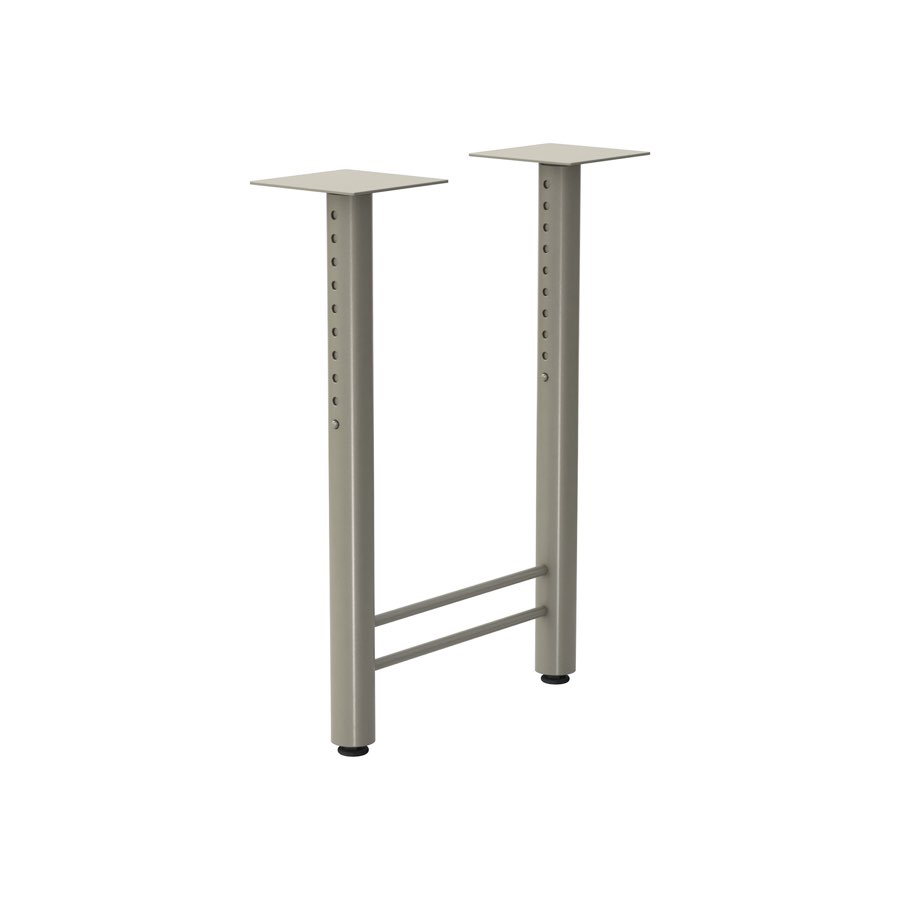

    • Height range 24-3/4″ – 33-3/4″: add prefix “AH” to part #, add $164 LIST
    • Height range 37-3/4″ – 40-3/4″: add prefix “AHB” to part #, add $194 LIST
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty
