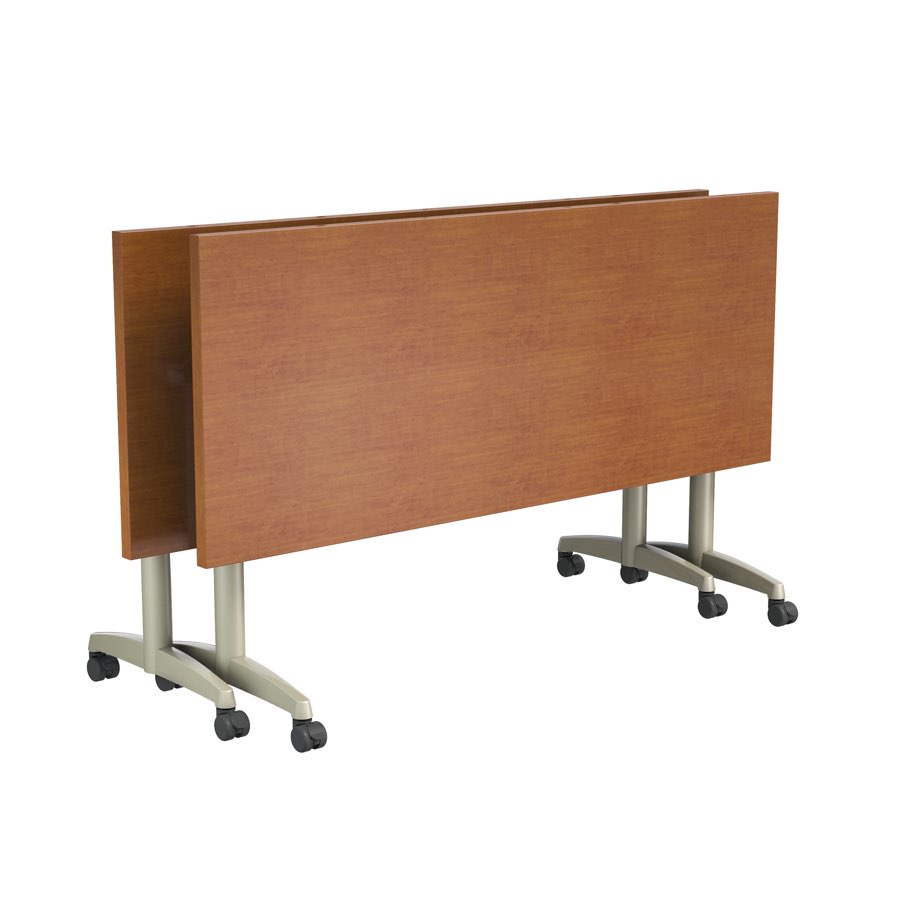

DuraCast T Base Flip-Top

Functionality, classic styling, and lasting quality come together in this base. Using a flip-top base, the user can flip up the top for easy storage and nesting. The handle release mounts on the underside of the table and is centered on the table length. The single handle allows one person to release both mechanisms simultaneously and flip the table up or down. The DuraCast series offers a steel column with cast aluminum feet. Gibraltar’s standard Silver and Gray bases come with a silver mechanism. All other colors receive a black mechanism. Patented base.

ADDITIONAL 15% SURCHARGE EFFECTIVE AUGUST 2, 2021

Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
H50502-1/4" Dia.20"15-1/4"N/A10 lbs.27-3/4"
H50542-1/4" Dia.26"20"N/A11 lbs.27-3/4"
H50562-1/4" Dia.36"26"N/A12 lbs.27-3/4"
  • Construction:
    • Bolted, welded combination
    • Flip-Top mechanism is mechanically attached to base with (4) screws (supplied)
  • Tubing: 2-1/4″ OD x 13ga tubing
  • Base: Cast aluminum
  • Flip-Top Mechanism:
    • Available in Silver and Black
      • Silver housings ship with Silver and Medium Gray base finishes
      • Black housings ship with all other standard base finishes
      • For questions or special requests please call
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Handle release is included and ships attached with standard length cables
    • For tables longer than 72″ please call
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish: Powder coat finish as standard.
    • Polished and Satin options are a combination of chrome (column) and aluminum (feet)
  • Assembly and Shipping:
    • Column and feet ship assembled.
    • Assemble flip-top mechanism to base with (4) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20.70 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6.21 LIST
  • Polished and Satin finishes: add $31.05 LIST
  • Special heights:
    • Shorter, add $25.88 LIST
    • Taller up to bar height, add $36.23 LIST
    • Bar Height, add prefix “B” to part #, add $36.23 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $14.49 LIST
    • Soft Wheel: Add prefix “D” to part #, add $21.74 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $36.23 LIST
    • Self-Leveling glides do add to base height
  • Leveler Extensions:
    • Add prefix “E” to part #, add $26.91 LIST
    • Used in combination with casters for wheelbarrow application.
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $70.38 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $101.43 LIST
  • In-line Nesting:
    • Bases get welded on an angle to allow for an in-line nesting solution
    • Add prefix “3030-” to part number, add $12.42 LIST
  • Wire Holes
    • Add prefix “W” to part #, add $20.70 LIST
    • Includes (2) wire holes with 1-1/4″ removable grommets.
    • Holes are 1-1/2″ x 2-1/4″ with grommets removed.
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty
