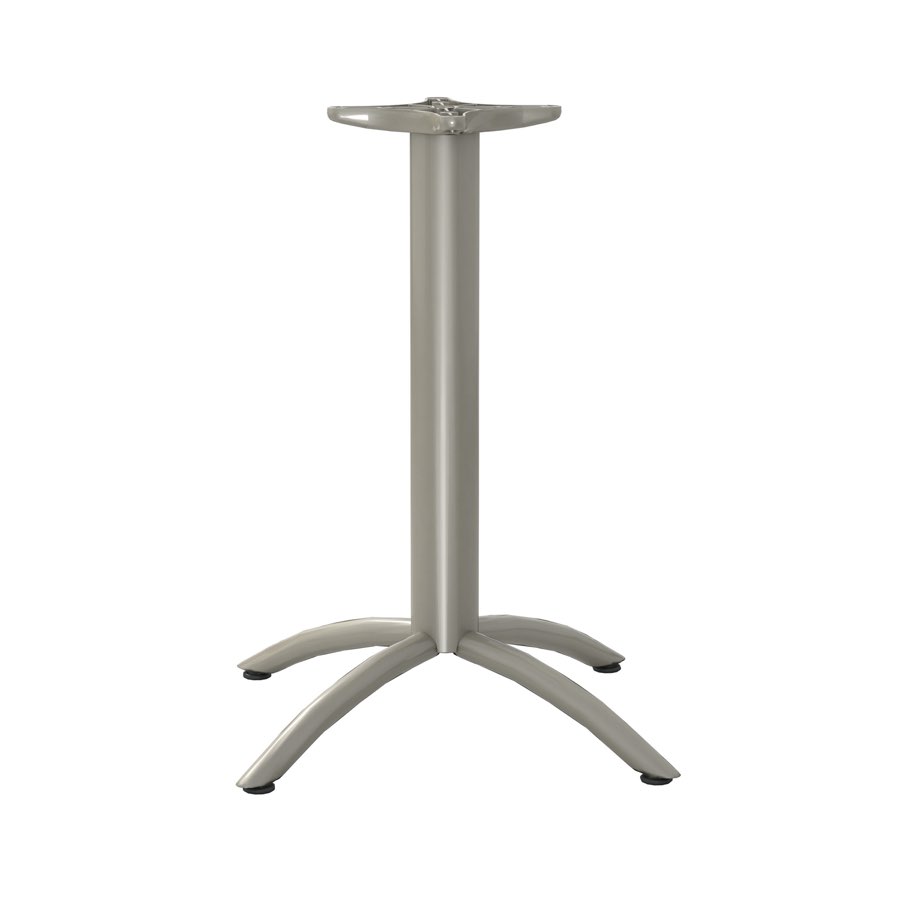

Arch X Base

For maximum stability and a sleek, contemporary look, Gibraltar’s Arch X base stands up to anything else on the market. Choose from three base spreads to fit most any environment.

ADDITIONAL 8% SURCHARGE EFFECTIVE AUGUST 2, 2021

Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
73263" Dia.30"sq / 36"rd26" x 26"N/A15 lbs.27-3/4"
73323" Dia.36"sq / 42"rd32" x 32"N/A16 lbs.27-3/4"
73383" Dia.42"sq / 54"rd38" x 38"N/A28 lbs.27-3/4"
  • Construction: Rigid bolted.
  • Tubing:
    • Column 3″ OD x 16ga
    • Foot 1-3/8″ OD x 13ga
  • Mounting Plate:

    • Part #7326 and #7332 have a cast aluminum spider. Requires (8) #12-14 screws, not supplied
    • Part #7338 has a 12″ x 12″ x 4ga plate. Requires (12) #12-14 screws, not supplied
  • Tie Rod: 1/2-13 threaded rod
  • Base Height: 27-3/4″
  • Adjustable Leveler: 1-3/8″ dia. x 1/4-20 x 5/8″ shank.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Shipped KD, assembly required.
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $10.35 LIST
  • Polished and Satin Chrome:
    • #7326, add $87.98 LIST
    • #7332, add $93.15 LIST
    • #7338, add $98.33 LIST
  • Special heights:
    • Shorter, add $36.23 LIST
    • Taller up to bar height, add $46.58 LIST
    • Bar Height, add prefix “B” to part #, add $46.58 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $28.98 LIST
    • Soft Wheel: Add prefix “D” to part #, add $43.47 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $33 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Flip-Top:

    • Add prefix “FT” to part #. Add $86.94 LIST
    • Max. top size is 48″ with levelers, 44″ with casters
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty
