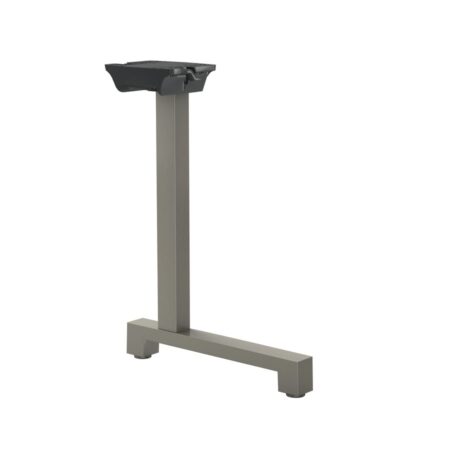

FRED C Base Folding

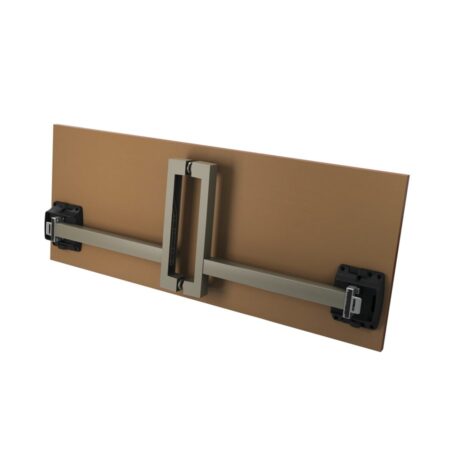

FRED folding bases are a great solution for an environment needing more of an architectural and contemporary feel. Concealed wheels, adjustable height, and caster options leave nothing to the imagination. Folding legs can be mounted on tables as short as 60″. For tables between 36″ and 59″ long, a riser bracket raises one mechanism off the table to allow one leg to fold over the other. Enjoy the look, the quality, and the longevity this product offers. Patented base.



ADDITIONAL 22% SURCHARGE EFFECTIVE AUGUST 2, 2021

Part #Column SizeRecommended Max. Top DepthBase SpreadLengthWeightOverall Height
54652" x 2-1/2"32"26"N/A13 lbs.27-3/4"
54632" x 2-1/2"20"17"N/A11 lbs.27-3/4"
54642" x 2-1/2"24"20"N/A12 lbs.27-3/4"
  • Construction:
    • Rigid bolted
    • Folding mechanism is mechanically attached to base with (4) screws (supplied)
  • Column: Aluminum
  • Base: Die cast aluminum
  • Folding Mechanism:
    • Injections molded, aluminum and steel
    • Requires (8) #12-14 screws, not supplied
    • Risers required on one leg for tables shorter than 60″, see Options.
  • Base Height: 27-3/4″
  • Adjustable Leveler: 3/8-16 x 3/4″ long shank.
  • Finish: Powder coat finish as standard.
  • Assembly and Shipping:
    • Column and feet ship assembled.
    • Assemble folding mechanism to base with (4) screws (supplied).
    • Parts ship 2 per box (sold individually)
    • Broken carton charge for odd quantity is $20.70 LIST
    • Can be shipped via FedEx or UPS
  • Unfinished/Raw: subtract $6.21 LIST
  • Polished Aluminum: add $41.40 LIST
  • Special heights:
    • Shorter, add $41.40 LIST
    • Taller up to bar height, add $46.58 LIST
    • Bar Height, add prefix “B” to part #, add $46.58 LIST
  • Concealed Wheels: Add prefix “N” to part #, add $51.75 LIST
  • Casters:
    • Hard Wheel: Add prefix “C” to part #, add $14.49 LIST
    • Soft Wheel: Add prefix “D” to part #, add $21.74 LIST
  • Self-Leveling Glides:
    • Add prefix “K” to part #, add $20 LIST
    • Self-Leveling glides do add approx. 1/2″ to base height
  • Risers
    • Add prefix “R” to part #, add $51.75 LIST
    • Risers are required on one leg for tables shorter than 60″
  • Adjustable Spring Clip:
    • Height range 24-3/4″ – 33-3/4″ add prefix “AH” to part #, add $89.01 LIST
    • Height range 27-3/4″ – 40-3/4″ add prefix “AHB” to part #, add $111.78 LIST
  • Wire Holes
    • Add prefix “W” to part #, add $20.70 LIST
    • Includes (2) wire holes 1-7/16″ x 2-1/4″
  • List quantity, part #, description, finish, and price.
  • All prices are FOB our facility, please specify your preferred method of shipment
  • Specify shipping and billing address
  • Please read terms and warranty
